Yongsheng Furniture Fittings Co.,Ltd

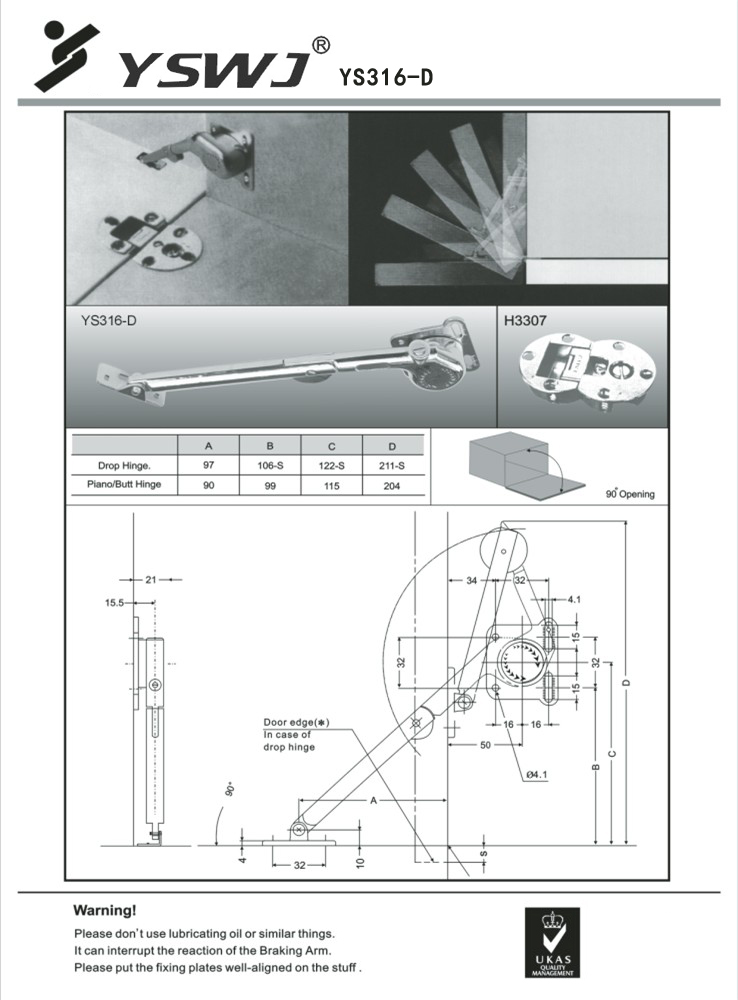

Soft lid stay YS316-D

Product category: Cabinet support
Hotline: 86-757-82629362
Model: YS316-D
Fax:
A、Soft down opening without slam
B、No need to use door stopper when closing .
C、Cycles: 50,000times
D、Only using for left or right, a single one usage is achieved
E、Adjustable closing speed



soft down stay




Product Description

A、Material:plastic POM、Zinc alloy、ZnAI4、 cold-rolled steel Q235、 resistance oil、spring steel 65Mn

B、Finish:plated(brass + nickel + sealing) ,  heat treatment





Features:


A、Soft down opening to 90° without slam
B、Only using for left or right, a single one usage is achieved
C、Adjustable closing speed
D、Application: cabinet height: 300mm-400mm, load capacity: 3-4kg





Product Advantages:

A、Soft down opening without slam

B、No need to use door stopper when closing .

C、Cycles: 50,000times

D、Using with H3307 flap hinge for better function.

 flap hinge


Product Parameters:

A、Installation condition: door weight 3-3.5kgs/pc, paried using is achieved
B、Appliacation for all downward opening kitchen cabinet




Others (Packing and services):

Package: 10pcs/inner box,100pcs/box,N.W/G.W: 23.3kgs/25.55kgs
MEAS: 31.2cm * 31.2cm * 25.2cm,
Delivery Date: Normally in one month
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days,UPS3-5days,Fedex/TNT 3-5days,EMS 7days reach destination )




soft lid support



Cabinet support
* Indicated required fieldInquire: Soft lid stay YS316-D
* First Name: Please fill in your First Name
* Last Name: Please fill in your Last Name
Company name: Please fill in your company name
Telephone number:
Mobile phone number: Please fill in your telephone number
* E-mail:
Country:
Address:
* Inquire intention description:
Please fill in the quantity and description of Inquire products for uniform stocking.
Soft lid stay  YS315-SU
Soft lid stay YS315-SU
A、Soft down with suction, no need to use damper.
B、Only using for left or right, a single one usage is achieved
C、Adjustable closing speed
D、Soft down closing without slam
E、Application: over 180mm-250mm height
F、Cycles: 50,000times
Soft down lid stay  YS316-SD
Soft down lid stay YS316-SD
A、Soft down opening to 90° without slam
B、Only using for left or right, a single one usage is achieved
C、Adjustable closing speed
D、Application: 180mm-250mm height
E、Cycles: 50,000times
Soft lid stay YS315-U
Soft lid stay YS315-U
A、Soft closing, no need to use soft close damper.
B、Only using for left or right, a single one usage is achieved
C、Adjustable closing speed
D、Soft down closing without slam
E、Cycles: 50,000times
Soft up close lid stay YS319-U
Soft up close lid stay YS319-U
A、Left or right using is achieved
B、low temperature resistance oil
C、Pass SGS test 30,000times
D、Clip-on assembly, easy to instal
E、Soft closing with suction, no need to use damper.
F、Using with soft closing hinge to get a better function..
G、Own Appearance Design Patent Certificate
