Soft down lid stay YS316-SD
Product category: Cabinet support
Hotline: 86-757-82629362
Model: YS316-SD
Email:yswj@yswj-gd.com
A、Soft down opening to 90° without slam
B、Only using for left or right, a single one usage is achieved
C、Adjustable closing speed
D、Application: 180mm-250mm height
E、Cycles: 50,000times

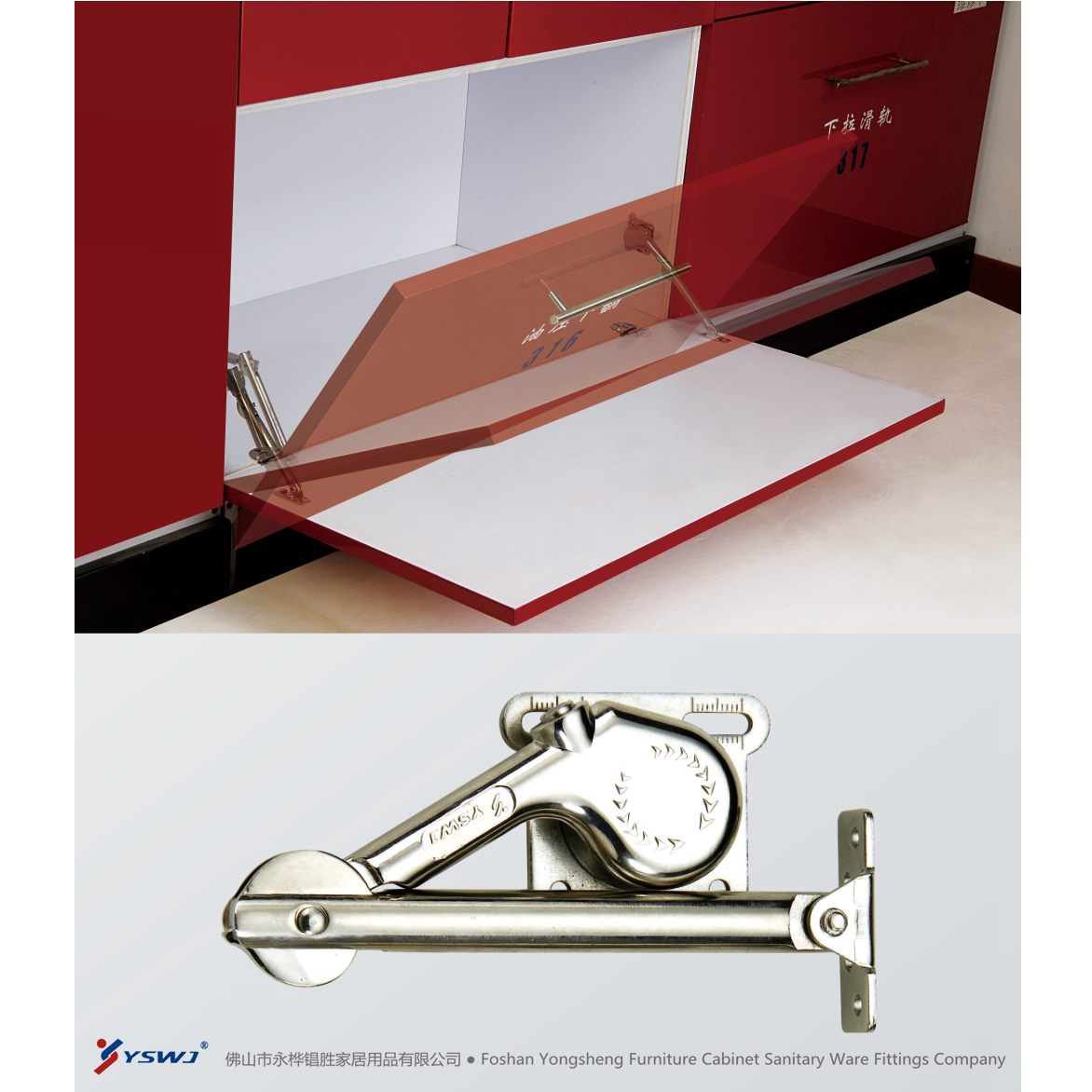

Soft down lid stay YS316-SD
.jpg)
Product Parameters：
A、Installation condition: paried using is achieved
B、Appliacation for all downward opening kitchen cabinet
C、Center to center: 175MM
D、Application: 180mm - 250mm height
E、Capacity:1.5-2.5KG
Product Description：
A、Material：plastic POM、Zinc alloy、ZnAI4、 cold-rolled steel Q235、 resistance oil、spring steel 65Mn
B、Finish：plated（brass + nickel + sealing） , heat treatment
Features：
A、Soft down opening to 90° without slam
B、Only using for left or right, a single one usage is achieved.
C、Adjustable closing speed.
D、Using with H3307 hinge for a better function.
.jpg "H3307 flap hinge")
Product Advantages:
A、Soft down with suction, no need to use soft close damper.
B、Cycles: 50,000times
