Current location: Home » Product Center » Hinge » Hinge H4340-2A

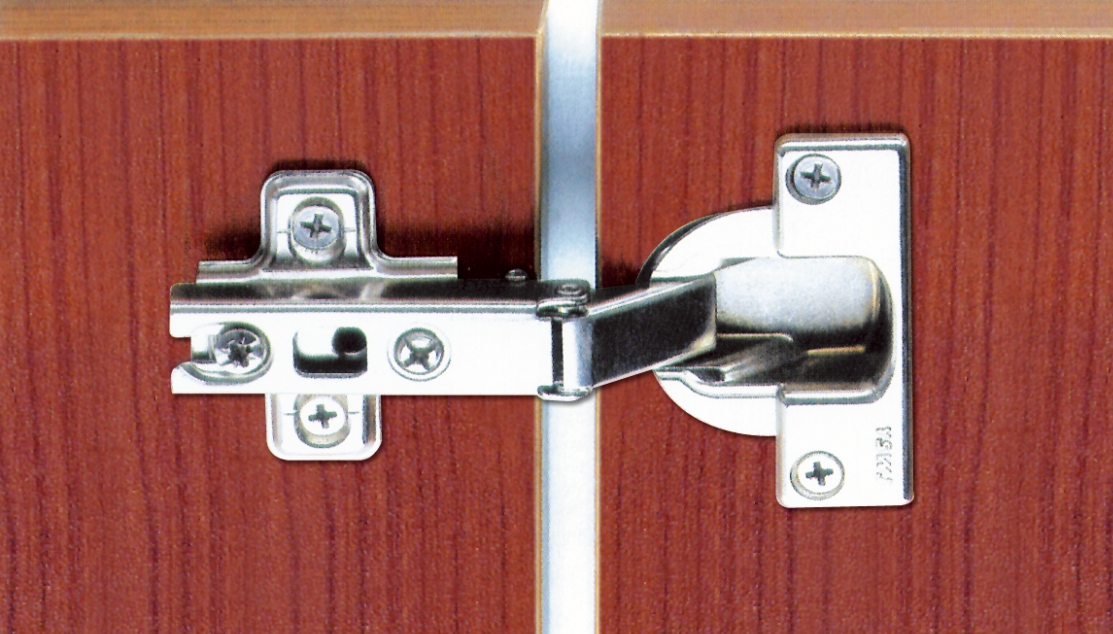

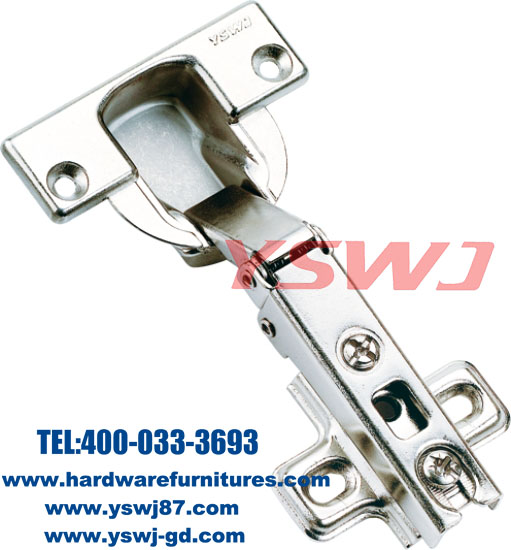

Hinge H4340-2A

Product category: Hinge
Hotline: 86-757-82629362
Model: H4340-2A
Fax:
A、Easy to assemble, 3-D adjustment is achieved.
B、Two way, less slam when closing
C、Solid wood funiture, thick & heavy door is available
D、24h/48h/72h corrosion resistance to pass SGS salt spray test、 can be achieved according to your requirements
E、cycles: over 50,000times





hinge




furniture hinge






Product Description:

A、Material: steel(cold rolled steel Q235, SK7 )、zinc alloy
B、Mounting plates: two holes, four holes can be available
C、Finish:plated(brass + nickel + sealing)

D、With screws in normal



Features:

A、Easy to assemble, 3-D adjustment is achieved.
B、Two way, less slam when closing
C、Door thickness: 20-28mm



Product advantages:

A、Solid wood funiture, thick & heavy door is available
B、Application for doors: 14-24mm
C、24h/48h/72h corrosion resistance to pass SGS salt spray test can be achieved according to your requirements



Product parameters:

A、cycles: over 50,000times

B、opening angle: 100°

door hinge




C、depth of cup: 11.5mm
D、diameter of cup: 40mm,c.c. 52mm


 flap hinge            kitchen hinge






E、Thickness of cup: 1.0mm

   Thickness of body part: 1.2mm

   Thickness of mounting plate: 1.2mm



Others (Packing and services):

Package: 200pcs/box,N.W/G.W: 17.5kgs/18.5kgs
MEAS: 42.5cm * 27.5cm * 23.5cm
Delivery Date: Normally in one month
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days,UPS3-5days,Fedex/TNT 3-5days,EMS 7days reach destination )
