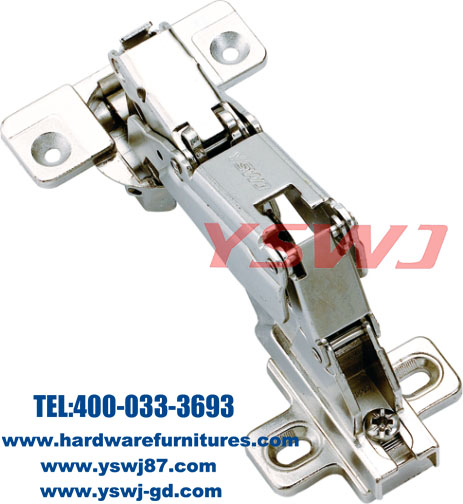

Concealed 165°hinge H3999-2C
.jpg)
Product Description
A、Material: cold rolled steel Q235、Zinc alloy
B、Mounting plates: two holes, four holes, heightening mounting plate can be available.
C、Finish：plated（brass + nickel + sealing）
D、With screws in normal
Product Features
Application: for closet, bookcase, base cabinet, TV bench, cabinet, wine cabinet, locker,ect
Product Advantages
The opening angle is 165° for a space-saving, the best chioce for high-class cabinet
Product Parameters
A、Cycles: over 50,000times, Opening angle: 165°
B、Depth of cup: 11.5mm, diameter of cup: 35mm, c.c: 48mm
C、Thickness of door part: 1.0mm
Thickness of body part: 1.2mm
Thickness of mounting plate: 1.2mm
D、Door thickness: 16-24mm can be achieved
Others ( Packing & Services)
Package: 200pcs/box
N.W/G.W: 18.5kgs/19kgs
MEAS: 41cm * 33cm * 17cm,
Delivery Date: Normally in one month
Payment Term: T/T
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days，UPS3-5days，Fedex/TNT 3-5days，EMS 7days reach destination )
