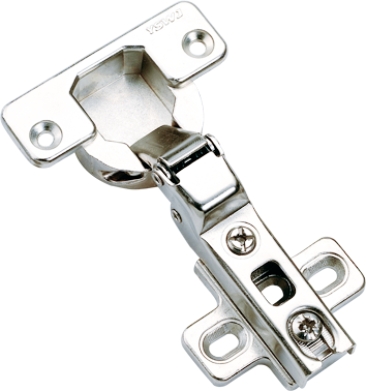

Hinge H3899-2B
Product category: Hinge
Hotline: 86-757-82629362
Model: H3899-2B
Email:yswj@yswj-gd.com
A、Easy to assemble, 3-D adjustment is achieved.
B、Two way, less slam when closing
C、24h/48h/72h corrosion resistance to pass SGS salt spray test can be achieved according to your requirements
D、cycles: over 50,000times
.jpg)
.jpg)
Product Description：
A、Material: steel(cold rolled steel Q235, SK7 )、zinc alloy

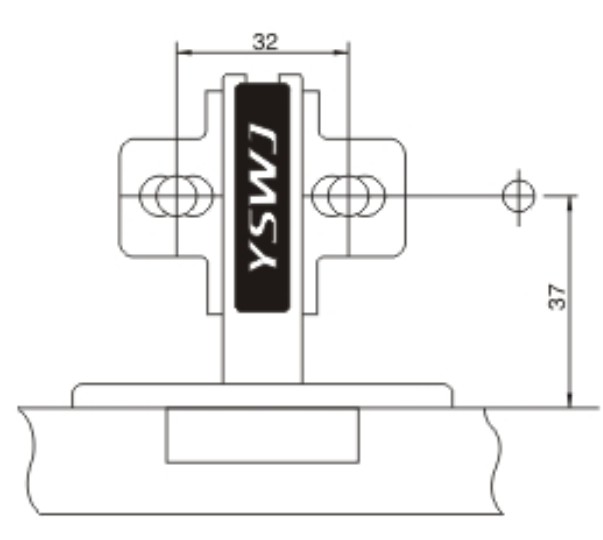

B、Mounting plates: two holes, four holes can be available
C、Finish：plated（brass + nickel + sealing）
Features：
A、Easy to assemble, 3-D adjustment is achieved.
B、Two way, less slam when closing
Product advantages:
24h/48h/72h corrosion resistance to pass SGS salt spray test can be achieved according to your requirements
Product parameters：
cycles: over 50,000times

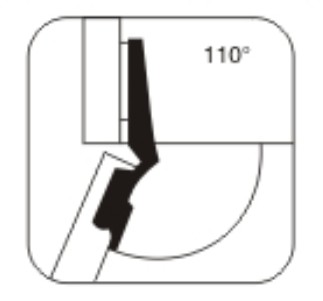

opening angle: 110°
.jpg)
depth of cup: 11.5mm

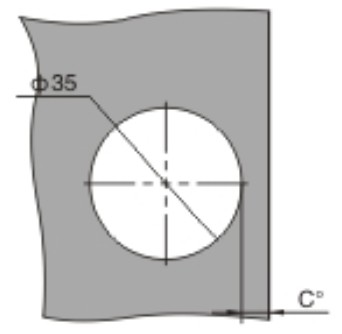

diameter of cup: 35mm,c.c. 48mm
.jpg)
.jpg)
