3-Fold Concealed Runner System YS710B
Product category: Concealed drawer slide
Hotline: 86-757-82629362
Model: YS710B
Email:yswj@yswj-gd.com
Capacity: 25kgs
Length: 300-550mm
Soft Closing: YES
Single-track extension
Fast to assemble & disassemble without tools
Thanks to the silent system to keep the slides moving smoothly
Product Description
- Capacity: 25kgs
- Finish: Zinc Plated
- Length: 300-550mm
- Soft Closing: YES
- For 16-19mm density board
Product Advantages
- Single-track extension
- Fast to assemble & disassemble without tools
- Thanks to the silent system to keep the slides moving smoothly
- 0 ~ +3mm adjustment for the height of drawer can be achieved
Product Parameters

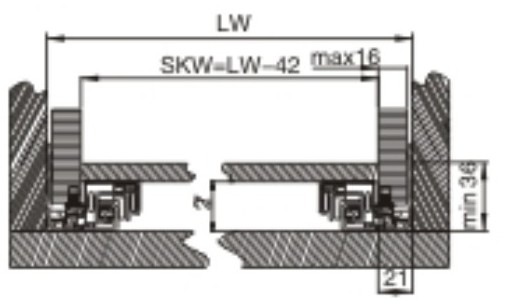

Mounting Dimension
SKW = Drawer Width
LW = The internal width of the cabinet

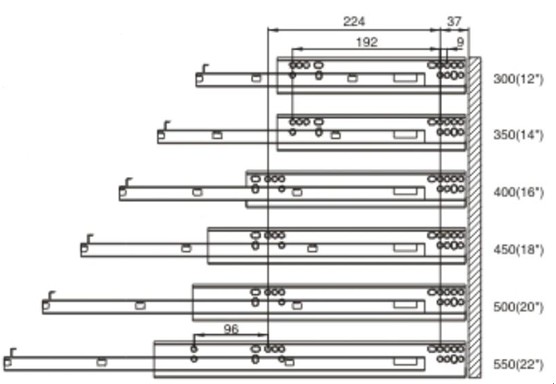

The Position of mounting hole
Concealed drawer slide
