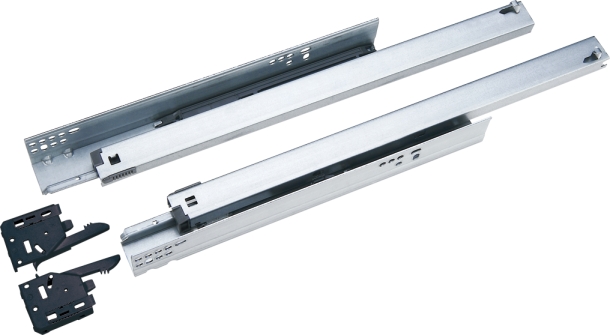

3-Fold Clip-on Concealed Runner System YS710A

Product category: Concealed drawer slide
Hotline: 86-757-82629362
Model: YS710A
Fax:
capacity: 25kgs
Length: 300-550mm
Soft Closing: YES
Single-track extension
Fast to assemble & disassemble without tools
Thanks to the silent system to keep the slides moving smoothly

full extension soft closing concealed drawer slide




 Product Description

  • capacity: 25kgs
  •
  • Finish: Zinc Plated
  •
  • Length: 300-550mm
  •
  • Soft Closing: YES
  •
  • For 16-19mm density board







Product Advantages

  • Single-track extension
  •
  • Fast to assemble & disassemble without tools
  •
  • Thanks to the silent system to keep the slides moving smoothly
  •
  • 0 ~ +3mm adjustment for the height of drawer can be achieved
  •







Product Parameters

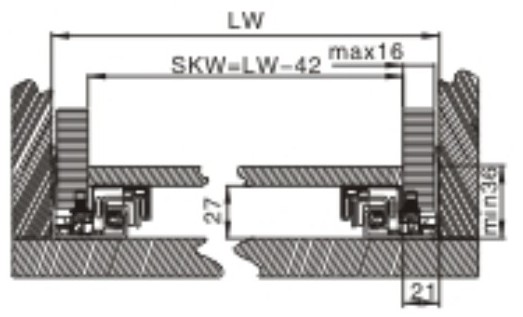

Mounting Dimension





SKW = Drawer Width



LW = The internal width of the cabinet

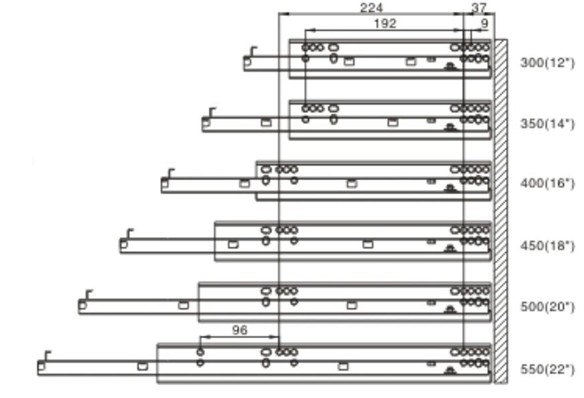

The Position of mounting hole





Concealed drawer slide
