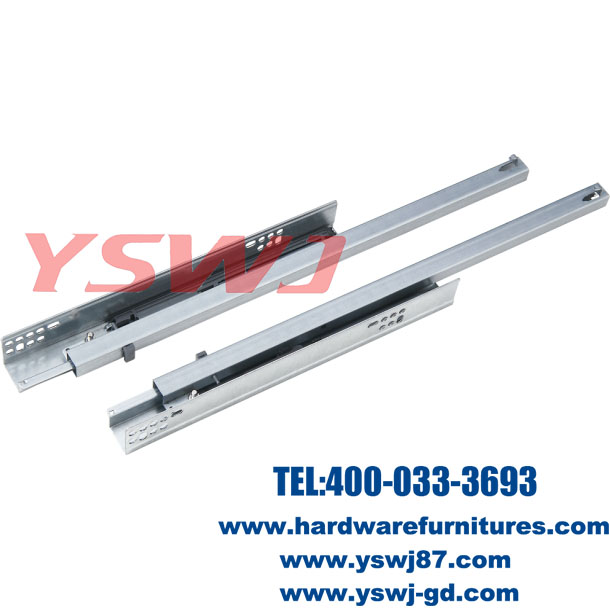

2-Fold Concealed Runner System YS720A

Product category: Concealed drawer slide
Hotline: 86-757-82629362
Model: YS720A
Fax:
Capacity: 25kgs
Length: 300-550mm
Soft Closing: YES
Single-track extension
Fast to assemble & disassemble without tools
Thanks to the silent system to keep the slides moving smoothly



underneath mounting slides




 Product Description

  • Capacity: 25kgs
  • Finish: Zinc Plated
  • Length: 300-550mm
  • Soft Closing: YES
  •
  • For 16-19mm density board



Product Advantages

  • Single-track extension
  • Fast to assemble & disassemble without tools
  • Thanks to the silent system to keep the slides moving smoothly
  • 0 ~ +3mm adjustment for the height of drawer can be achieved





Product Parameters

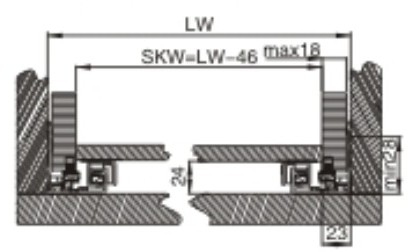

Mounting Dimension



SKW = Drawer Width



LW = The internal width of the cabinet

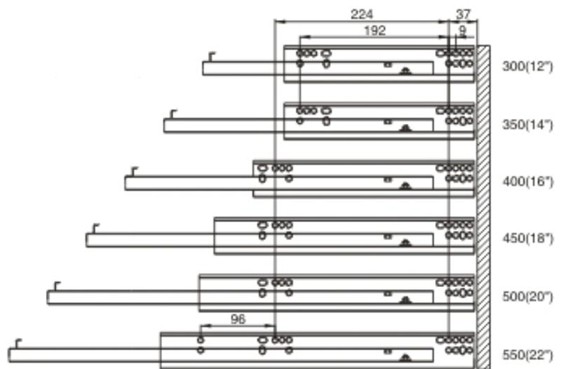

The Position of mounting hole





Concealed drawer slide
