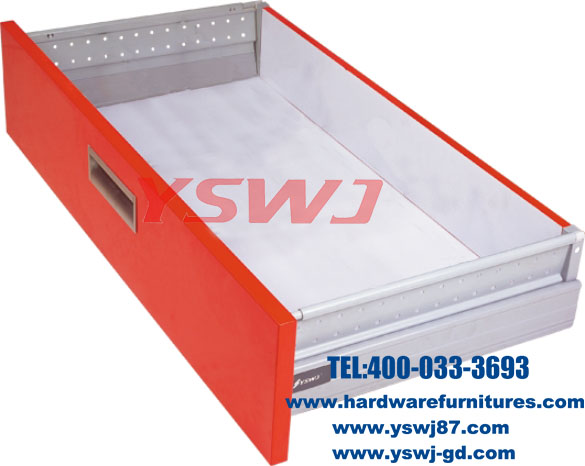

Tandem Box YS705

Product category: Concealed drawer slide

Hotline: 86-757-82629362

Model: YS705

Email:yswj@yswj-gd.com

1、Length: 270， 300， 350， 400， 450， 500， 550, 600mm
2、Capacity: heavily laden of 45kgs
3、Cycles: Passed SGS 80,000 cycles durability test which is far beyond the CNS requirements of 30,000 times.

Detail Feature&Parameters Advantages SGS/Patent FAQ Others

tandem box runners

Components

Product Description：

1、Length: 270， 300， 350， 400， 450， 500， 550, 600mm.
2、Capacity: heavily laden of 45kgs.

3、Cycles: Passed SGS 80,000 cycles durability test which is far beyond the CNS requirements of 30,000 times.

4、+/- 2 mm up/down and +/- 2 mm right/left adjustable.

5、For 16mm density board.

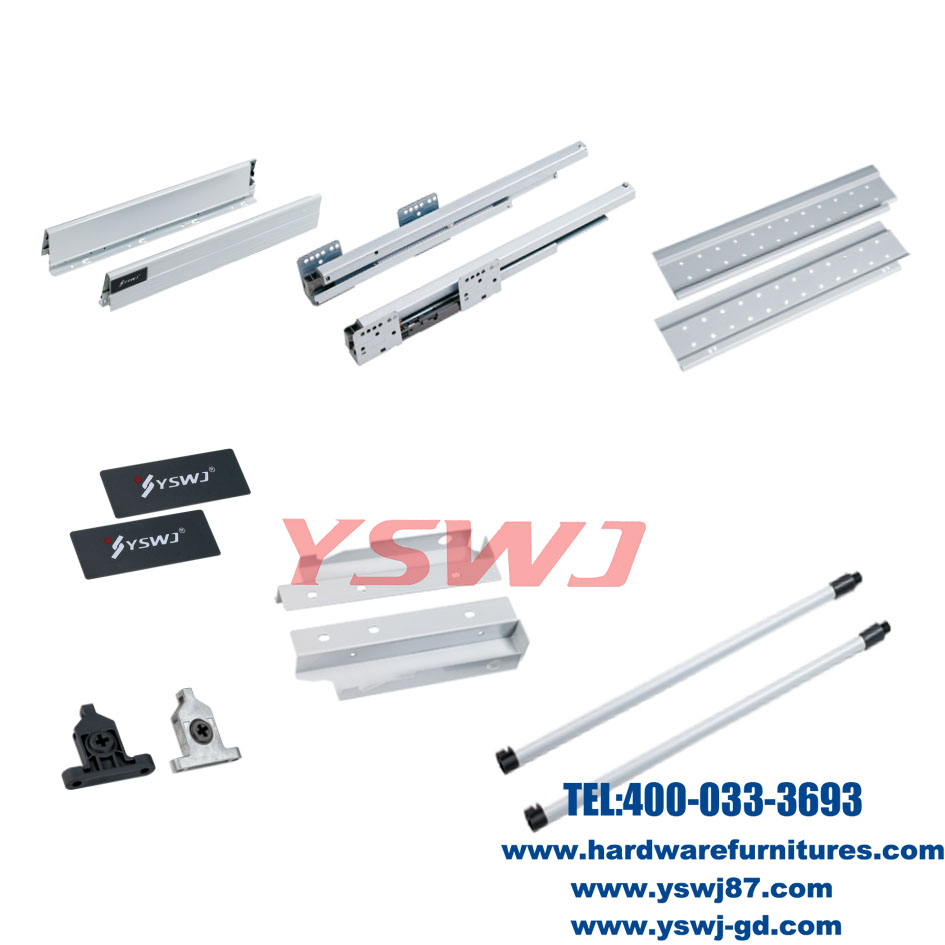

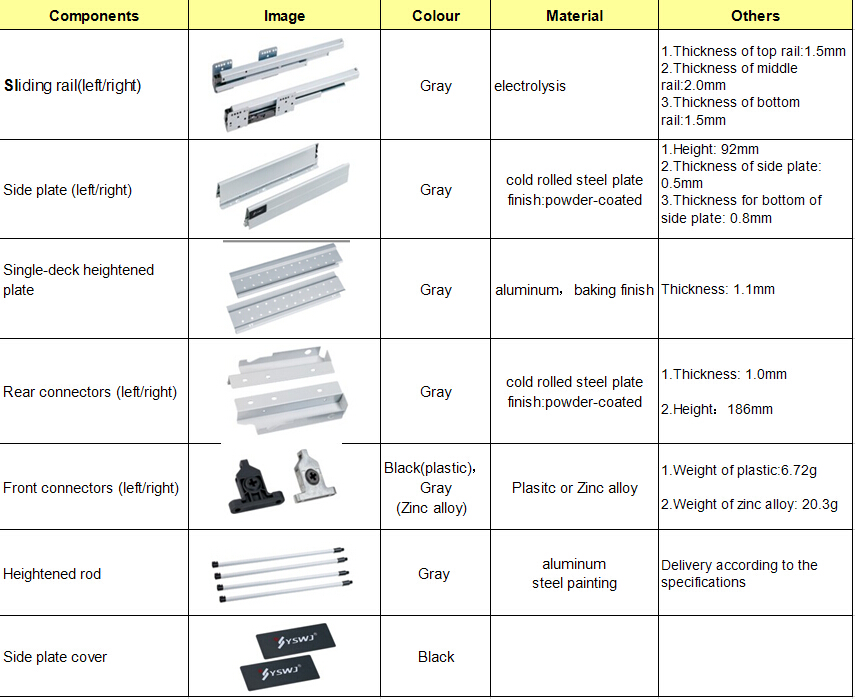

Details of Components:

$if(navigator.appVersion.match(/8./i)=='8.') { if (element.YUSERONCLICK) eval_r(element.YUSERONCLICK + 'onclick(event)'); } else { if (element.YUSERONCLICK) eval_r(element.YUSERONCLICK + 'anonymous()'); }$

Product Features:

D、Fast to assemble and disassemble for the front panel and rear panel.
E、Thanks to the newly-designed integrated damper, it will close silently and effortlessly.

F、This product make the available space more, which is easy to assemble the internal separator.

Product Advantage:

A、Electrolytic plate protects the slides form corrosion passing a 24h/48h/72h Saly-mist corrosion test.

B、In the case of load-bearing 45KG，tandem box can maintain obvious soft-closing function, which is far better than others.

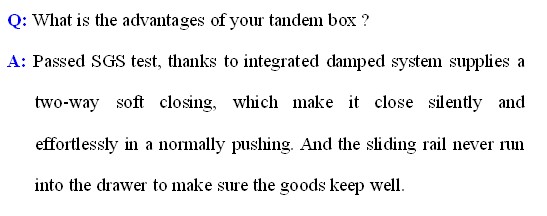

C、Passed SGS test, thanks to integrated damped system supplies a two-way soft closing, which make it close silently and effortlessly in a normally pushing. And the sliding rail never run into the drawer to make sure the goods keep well.

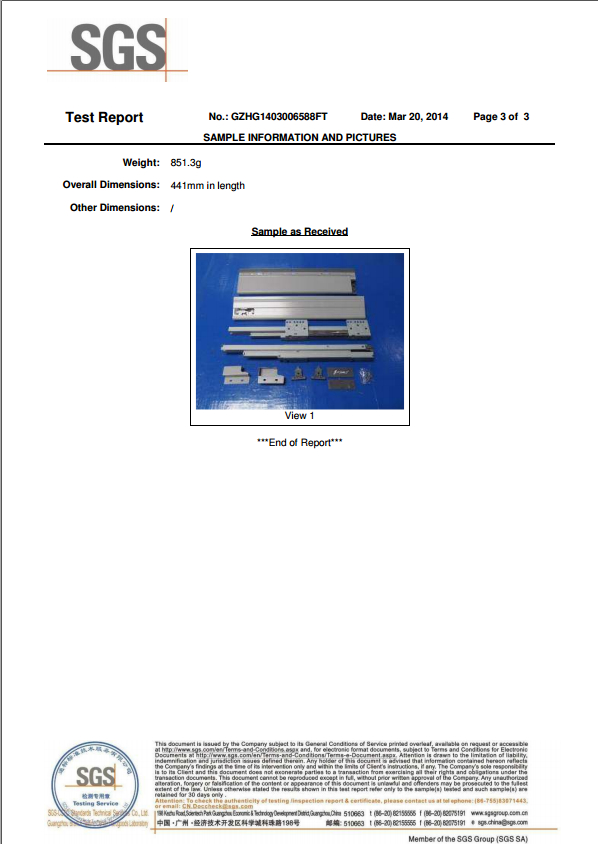

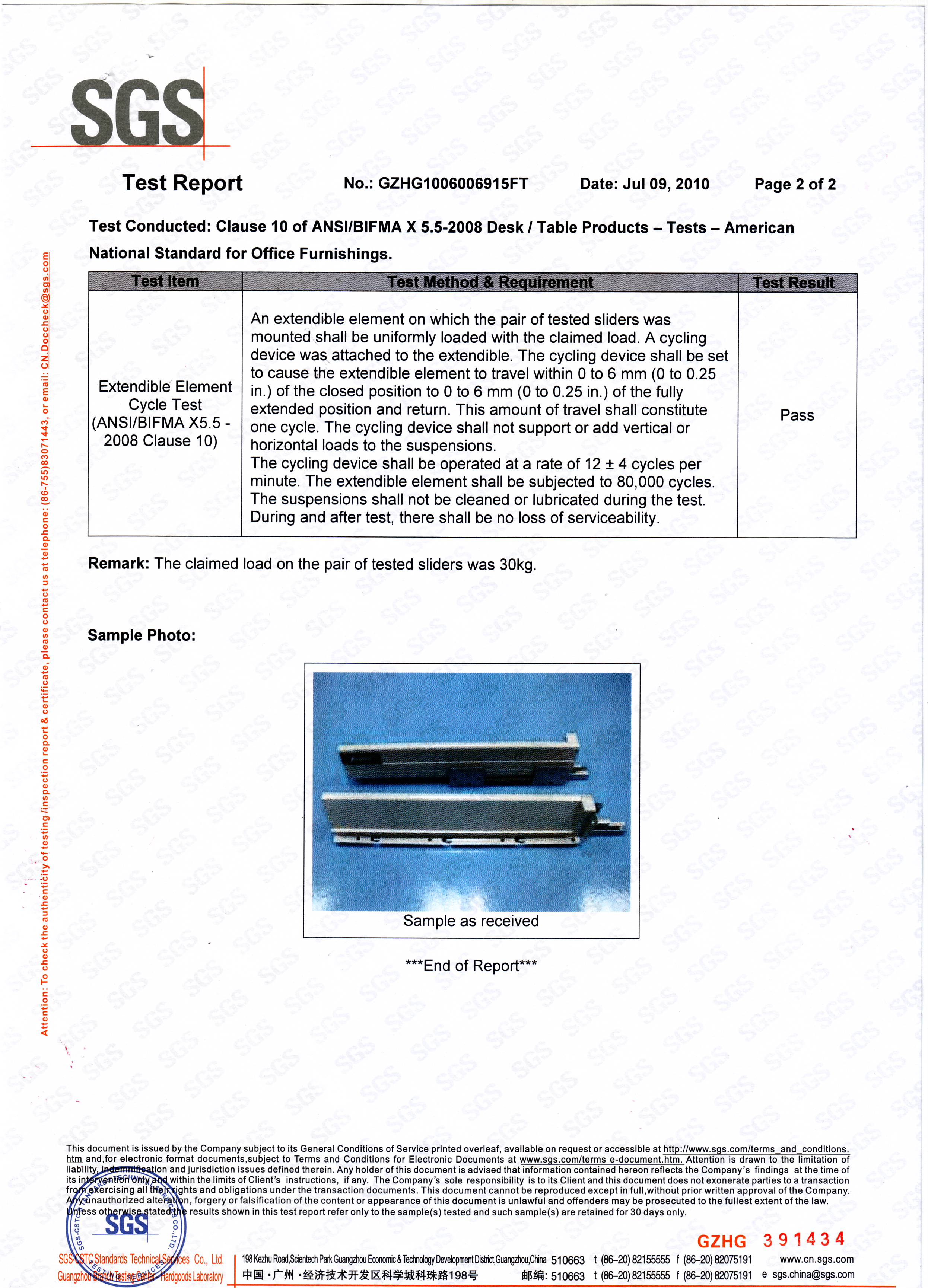

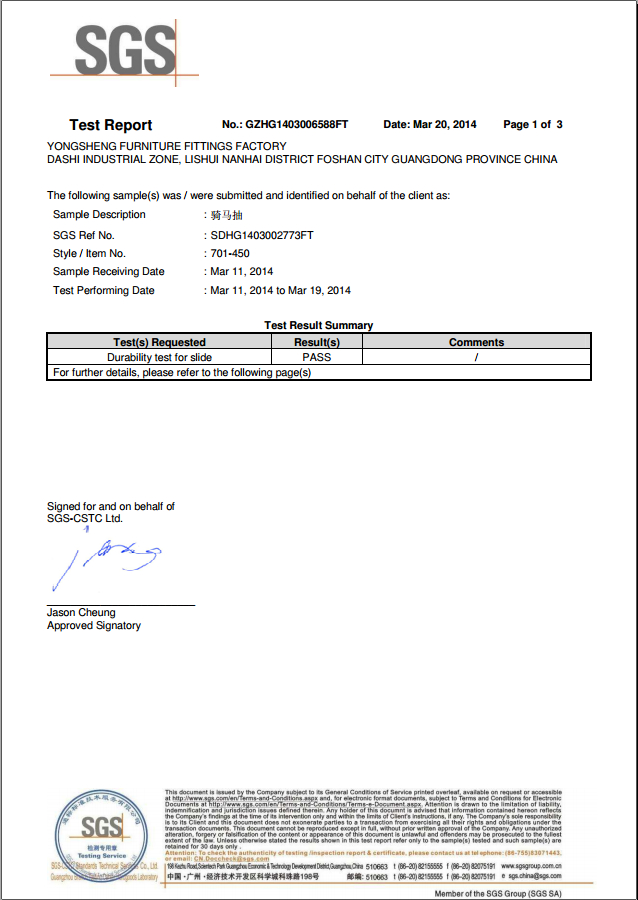

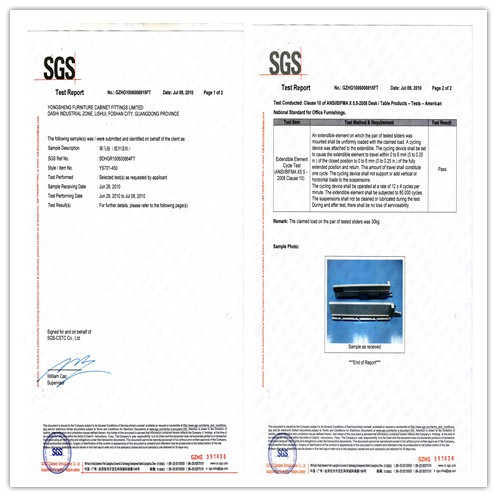

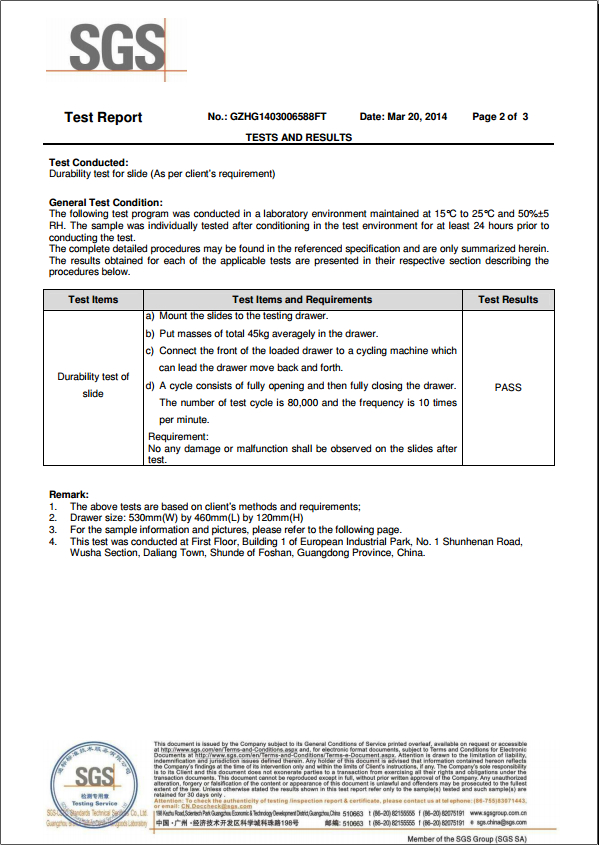

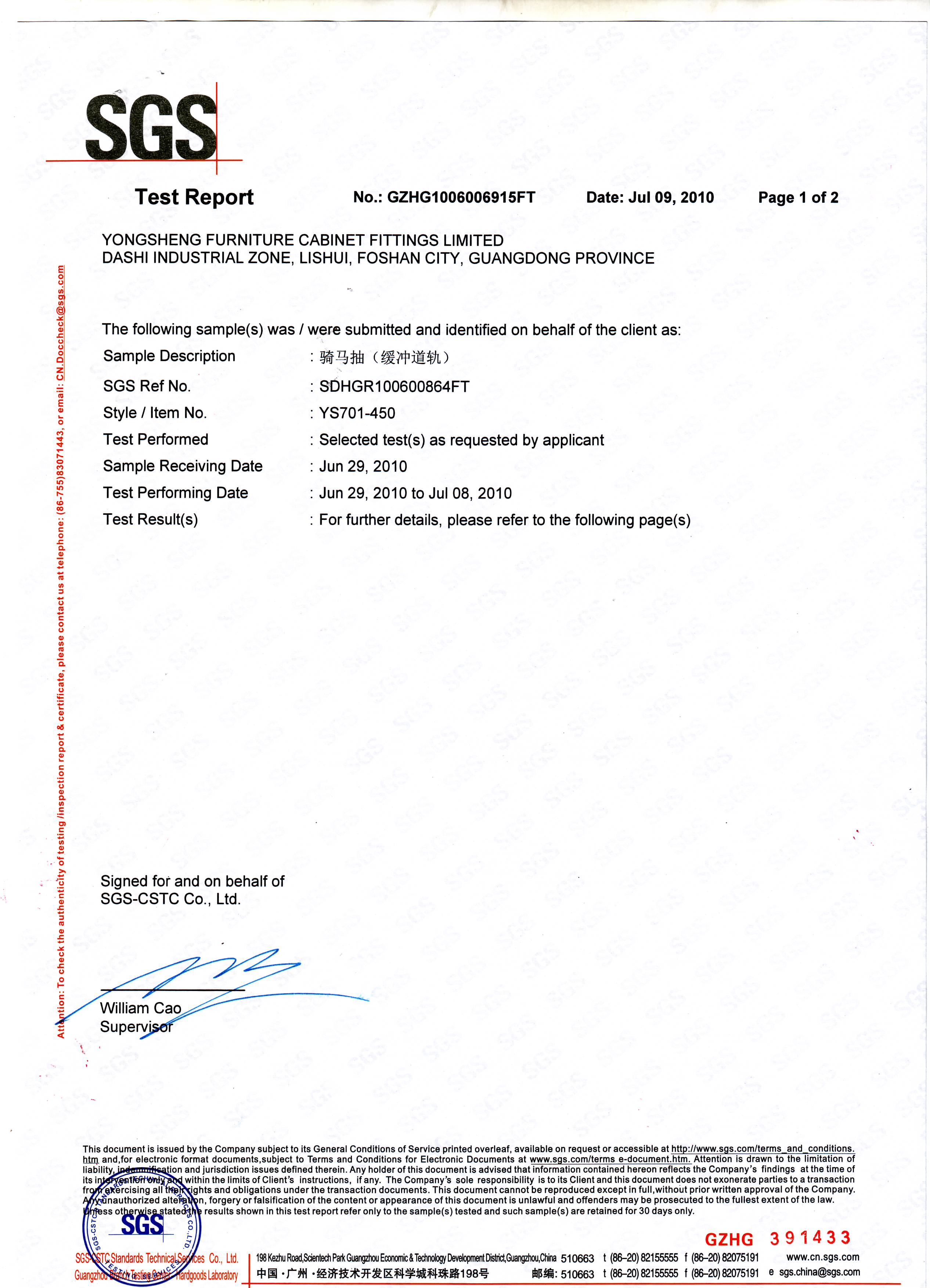

SGS Certificate

Product Parameter:

$if (element.YUSERONCLICK) { eval_r(element.YUSERONCLICK + 'anonymous()'); }$

Others:

Delivery Date	Normally in one month
MOQ	500sets
Supply Ability	100,000sets/month
Payment Terms	T/T

Product Features:

A、Smooth running with high loading capacity, soft closing.
B、Different width of drawer for your option, self-regulate error can be achieved.
C、2-D adjustment to adjust the panel up and down or left and right can be achieved.
D、Fast to assemble and disassemble for the front panel and rear panel.
E、Thanks to the newly-designed integrated damper, it will close silently and effortlessly.

F、This product make the available space more, which is easy to assemble the internal separator.

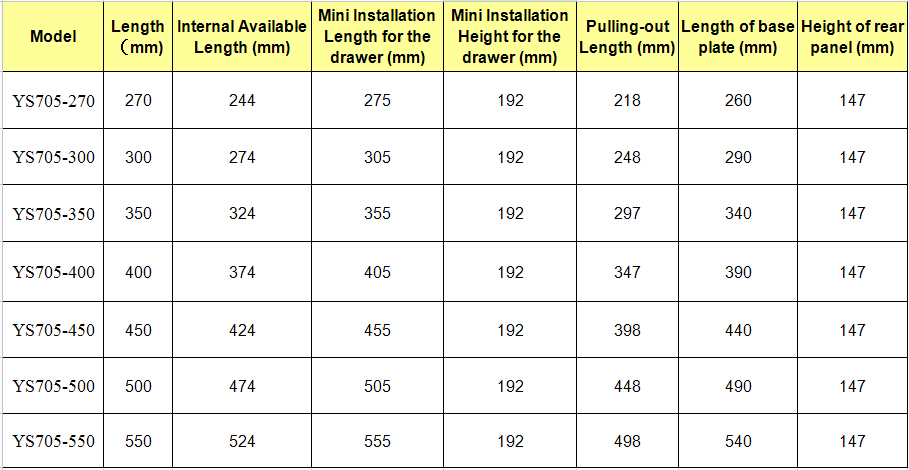

Product Parameter:

Model	Length	Internal Available Length	Mini Installation Length for the drawer	Mini Installation Height for the drawer	Pulling-out Length	Thickness of base plate	Length of base plate	Thickness of rear panel	Height of rear panel
YS705-270	270mm	244mm	275mm	192mm	218mm	16mm	260mm	16mm	147mm
YS705-300	300mm	274mm	305mm	192mm	248mm	16mm	290mm	16mm	147mm
YS705-350	350mm	324mm	355mm	192mm	297mm	16mm	340mm	16mm	147mm
YS705-400	400mm	374mm	405mm	192mm	347mm	16mm	390mm	16mm	147mm
YS705-450	450mm	424mm	455mm	192mm	398mm	16mm	440mm	16mm	147mm
YS705-500	500mm	474mm	505mm	192mm	448mm	16mm	490mm	16mm	147mm
YS705-550	550mm	524mm	555mm	192mm	498mm	16mm	540mm	16mm	147mm

Concealed drawer slide
