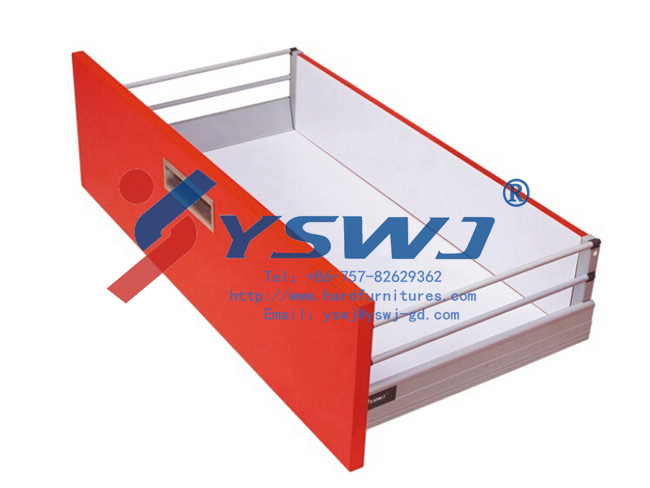

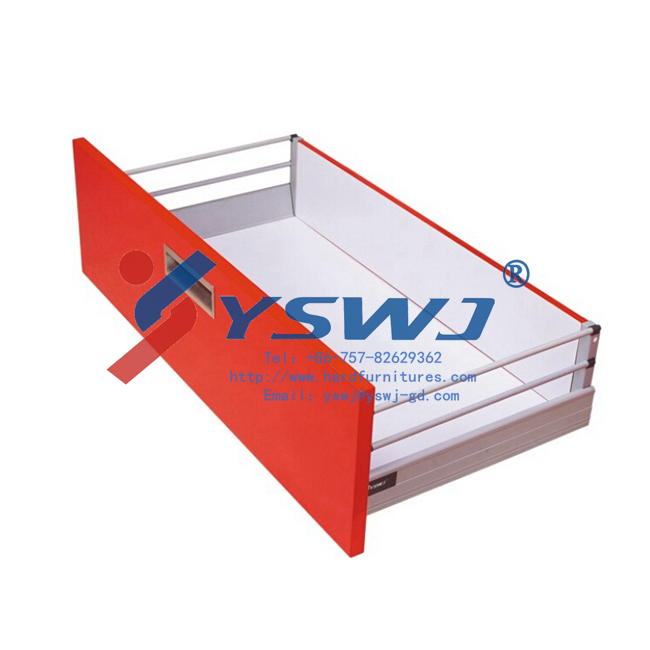

Tandem Box YS704

Product category: Concealed drawer slide

Hotline: 86-757-82629362

Model: YS704

Email:yswj@yswj-gd.com

1、Length: 270， 300， 350， 400， 450， 500， 550, 600mm
2、Capacity: heavily laden of 45kgs
3、Cycles: Passed SGS 80,000 cycles durability test which is far beyond the CNS requirements of 30,000 times.

Detail Feature&Parameters Advantages SGS/Patent FAQ Others

Components

Product Description：

1、Length: 270， 300， 350， 400， 450， 500， 550, 600mm.
2、Capacity: heavily laden of 45kgs.

3、Cycles: Passed SGS 80,000 cycles durability test which is far beyond the CNS requirements of 30,000 times.

4、+/- 2 mm up/down and +/- 2 mm right/left adjustable.

5、For 16mm density board.

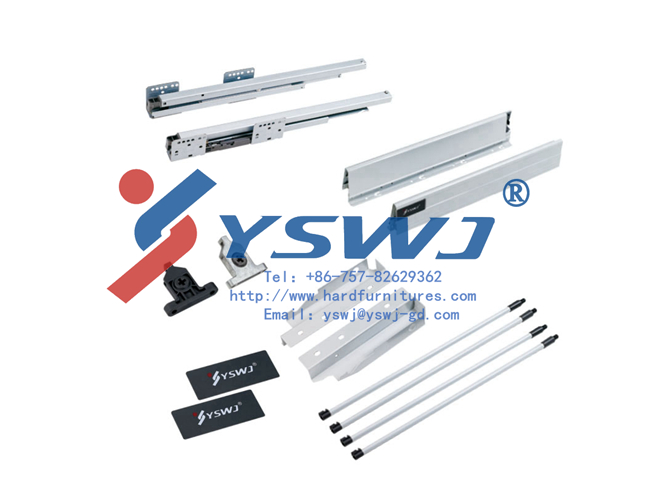

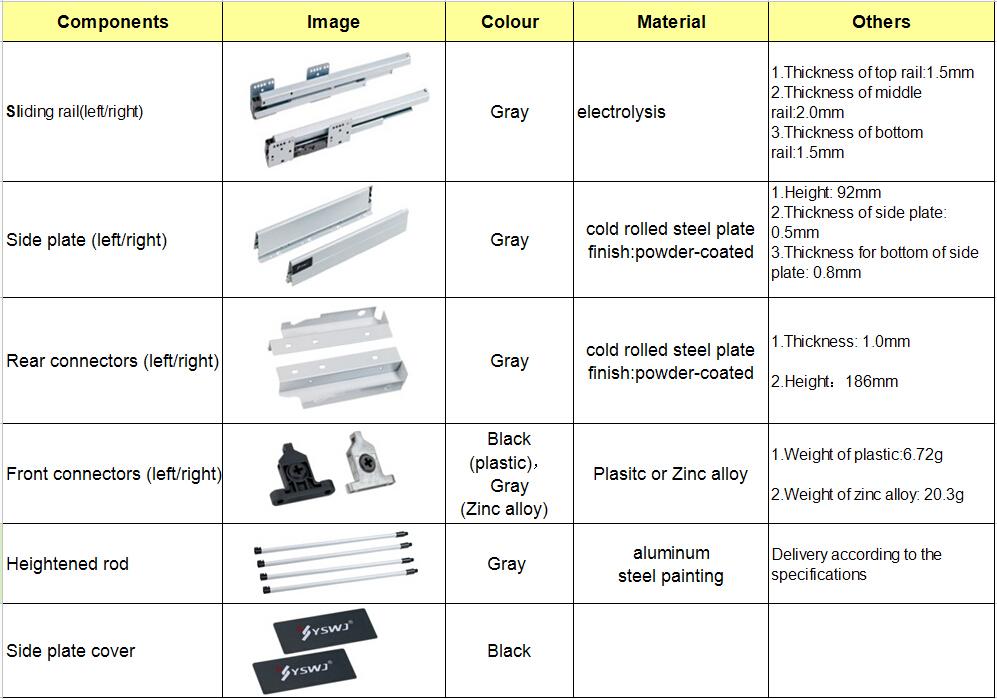

Details of Components:

$if (element.YUSERONCLICK) { eval_r(element.YUSERONCLICK + 'anonymous()'); }$

Product Features:

A、Smooth running with high loading capacity, soft closing.
B、Different width of drawer for your option, self-regulate error can be achieved.
C、2-D adjustment to adjust the panel up and down or left and right can be achieved.
D、Fast to assemble and disassemble for the front panel and rear panel.
E、Thanks to the newly-designed integrated damper, it will close silently and effortlessly.

F、Double heightened rod prevent goods fall down.

Product Advantage:

A、Electrolytic plate protects the slides form corrosion passing a 24h/48h/72h Saly-mist corrosion test.

B、In the case of load-bearing 45KG，tandem box can maintain obvious soft-closing function, which is far better than others.

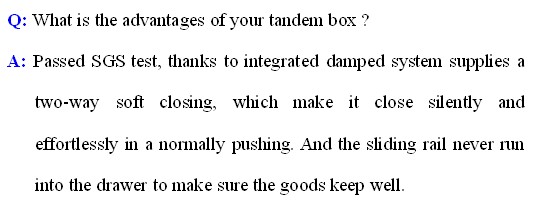

C、Passed SGS test, thanks to integrated damped system supplies a two-way soft closing, which make it close silently and effortlessly in a normally pushing. And the sliding rail never run into the drawer to make sure the goods keep well.

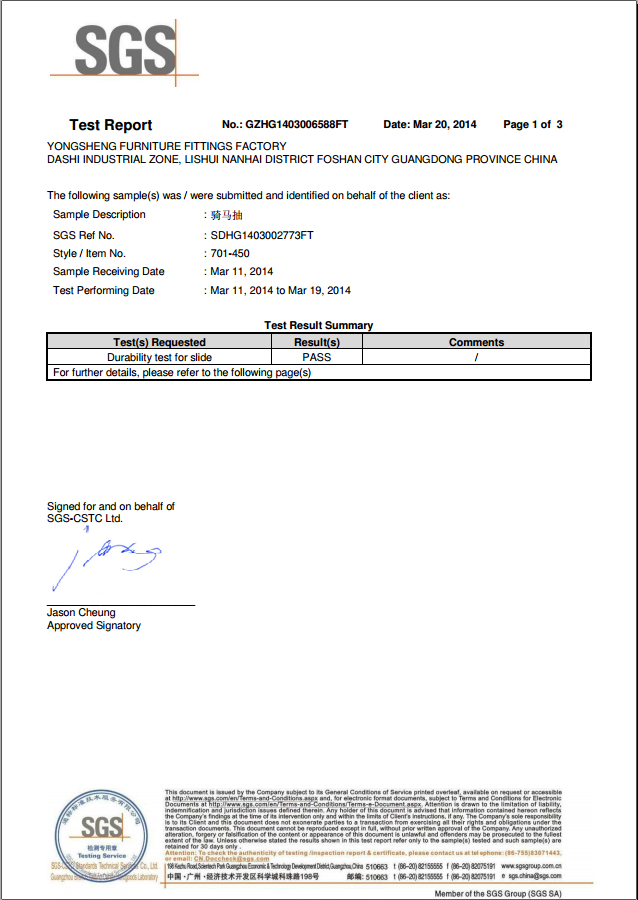

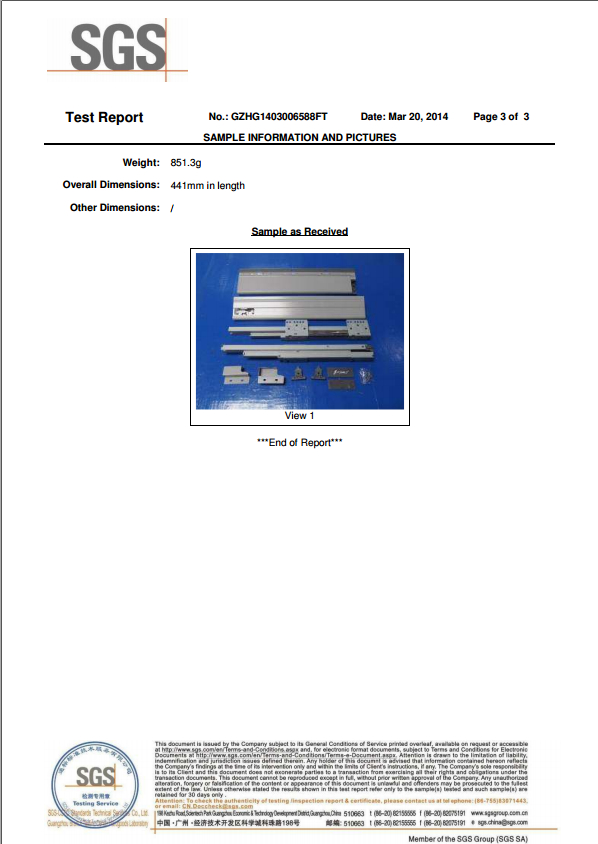

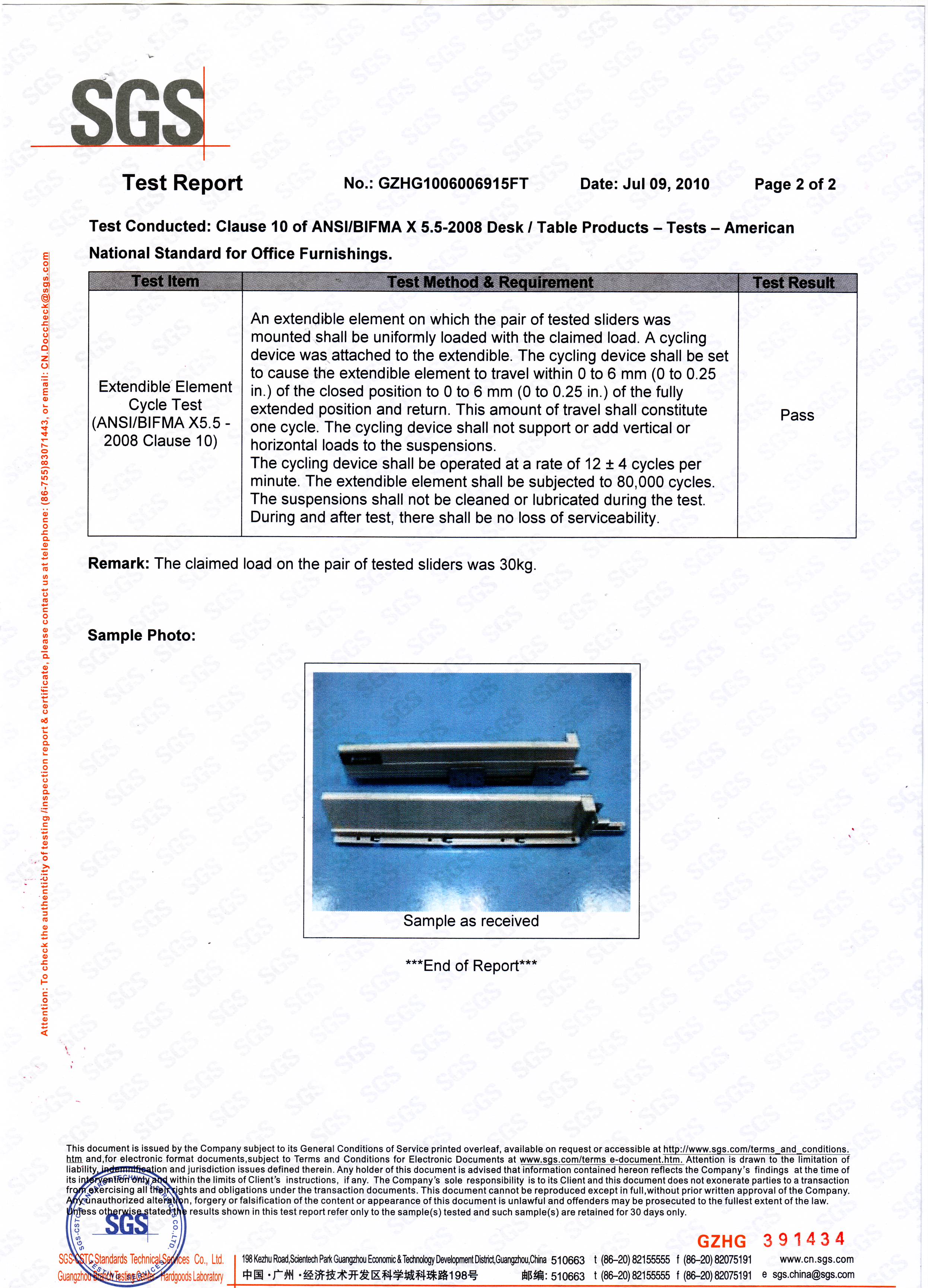

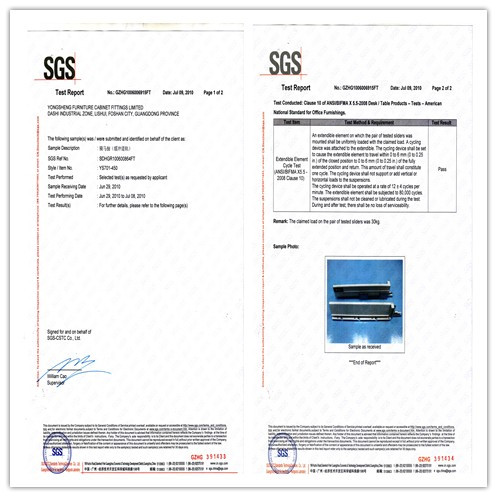

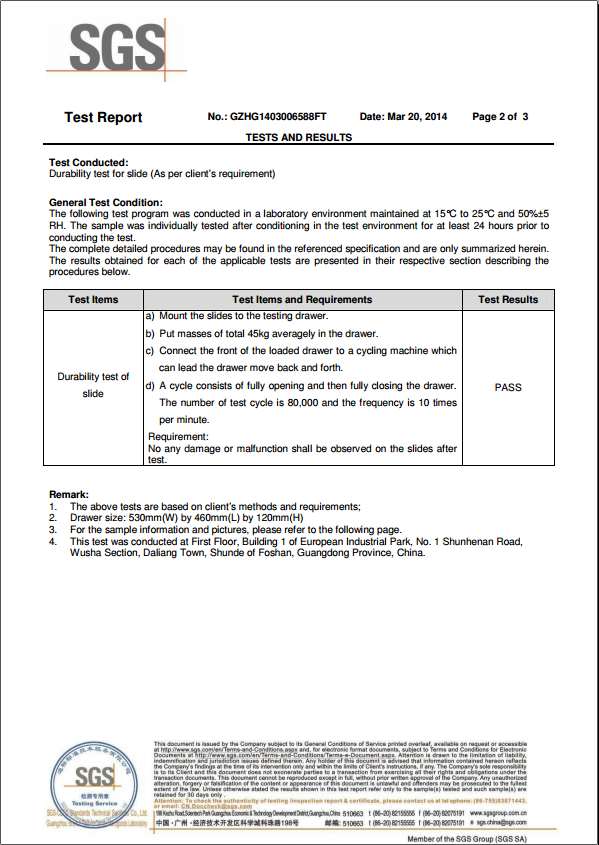

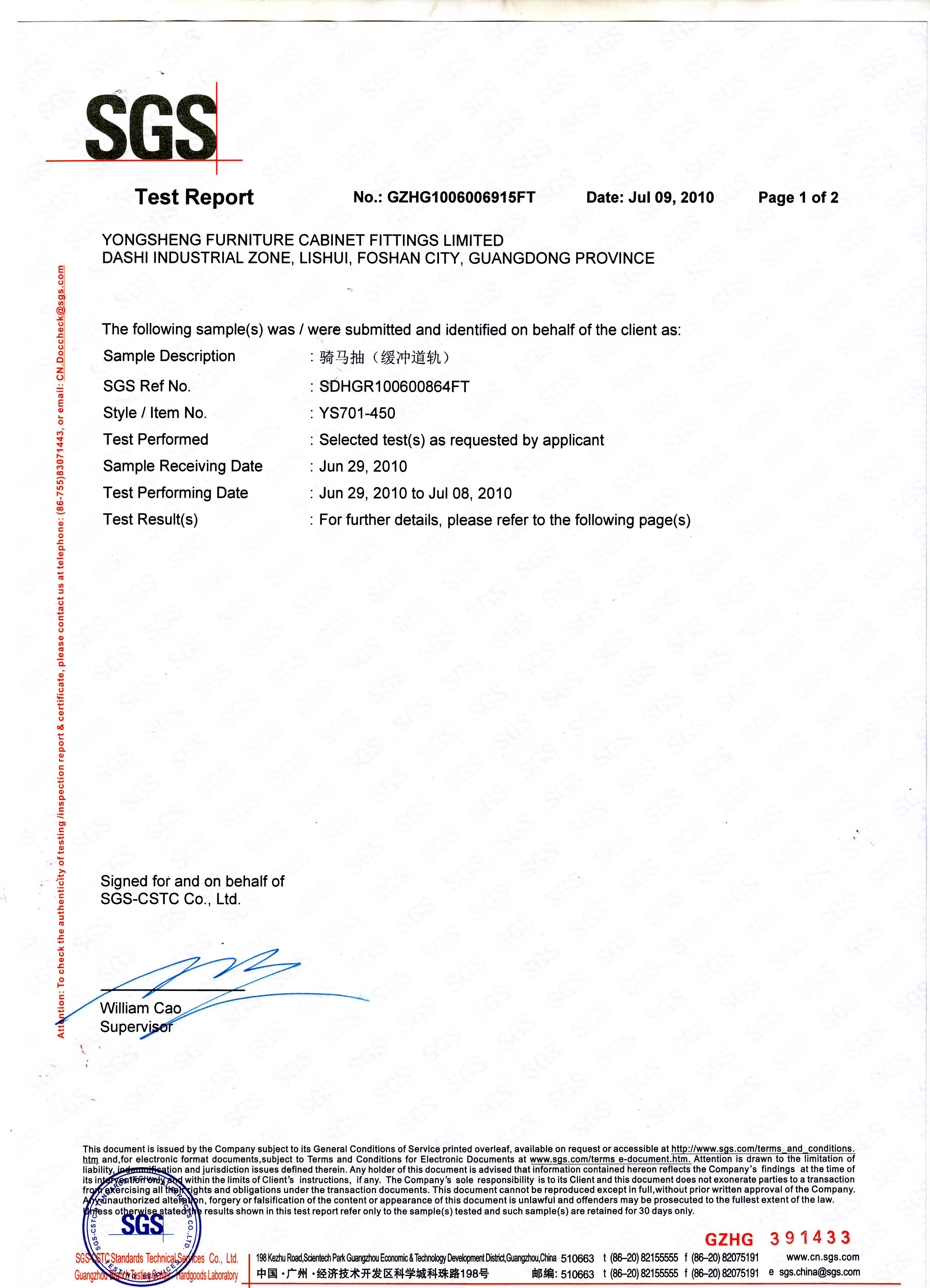

SGS Certificate

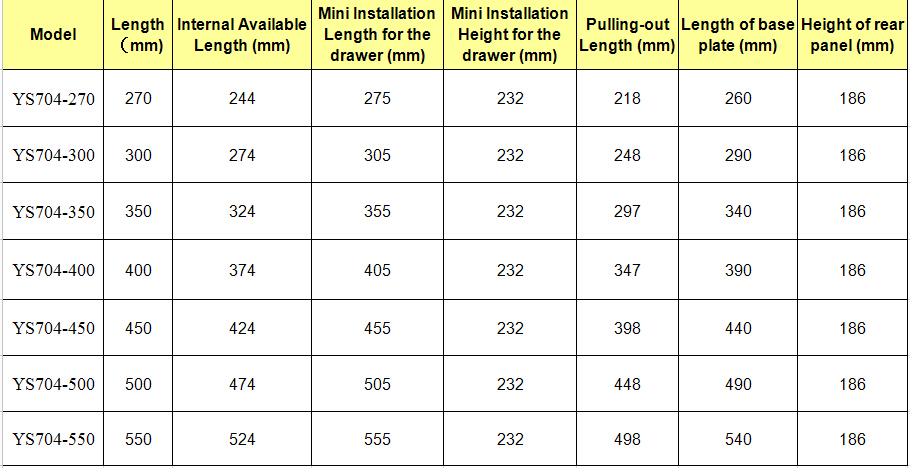

Product Parameter:

$if (element.YUSERONCLICK) { eval_r(element.YUSERONCLICK + 'anonymous()'); }$

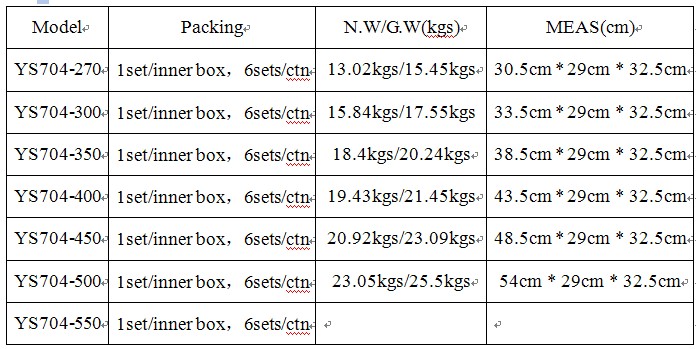

Others:

Delivery Date	Normally in one month
MOQ	500sets
Supply Ability	100,000sets/month
Payment Terms	T/T

Product Features:

A、Smooth running with high loading capacity, soft closing.
B、Different width of drawer for your option, self-regulate error can be achieved.
C、2-D adjustment to adjust the panel up and down or left and right can be achieved.
D、Fast to assemble and disassemble for the front panel and rear panel.
E、Thanks to the integrated damper, it will close silently and effortlessly.

F、Double heightened rod prevent goods fall down.

Product Parameter:

Model	Length	Internal Available Length	Mini Installation Length for the drawer	Mini Installation Height for the drawer	Pulling-out Length	Thickness of base plate	Length of base plate	Thickness of rear panel	Height of rear panel
YS701-270	270mm	244mm	275mm	232mm	218mm	16mm	260mm	16mm	186mm
YS701-300	300mm	274mm	305mm	232mm	248mm	16mm	290mm	16mm	186mm
YS701-350	350mm	324mm	355mm	232mm	297mm	16mm	340mm	16mm	186mm
YS701-400	400mm	374mm	405mm	232mm	347mm	16mm	390mm	16mm	186mm
YS701-450	450mm	424mm	455mm	232mm	398mm	16mm	440mm	16mm	186mm
YS701-500	500mm	474mm	505mm	232mm	448mm	16mm	490mm	16mm	186mm
YS701-550	550mm	524mm	555mm	232mm	498mm	16mm	540mm	16mm	186mm

Concealed drawer slide
