Perfect match G
Product category: Concealed drawer slide
Hotline: 86-757-82629362
Model: Perfect match of components 7
Email:yswj@yswj-gd.com

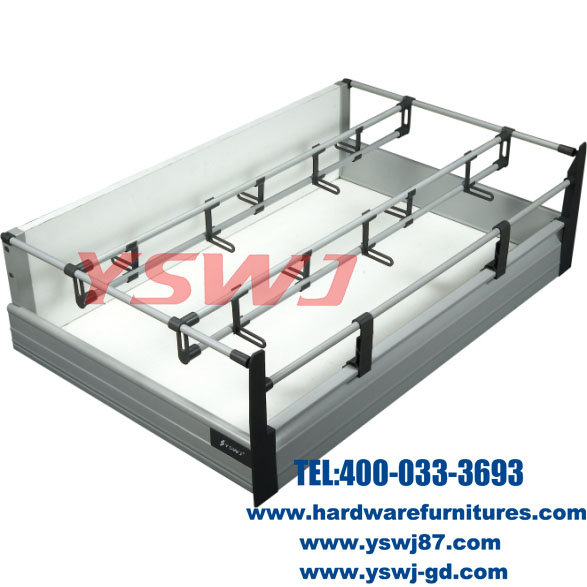

Assembly Photo
.jpg)

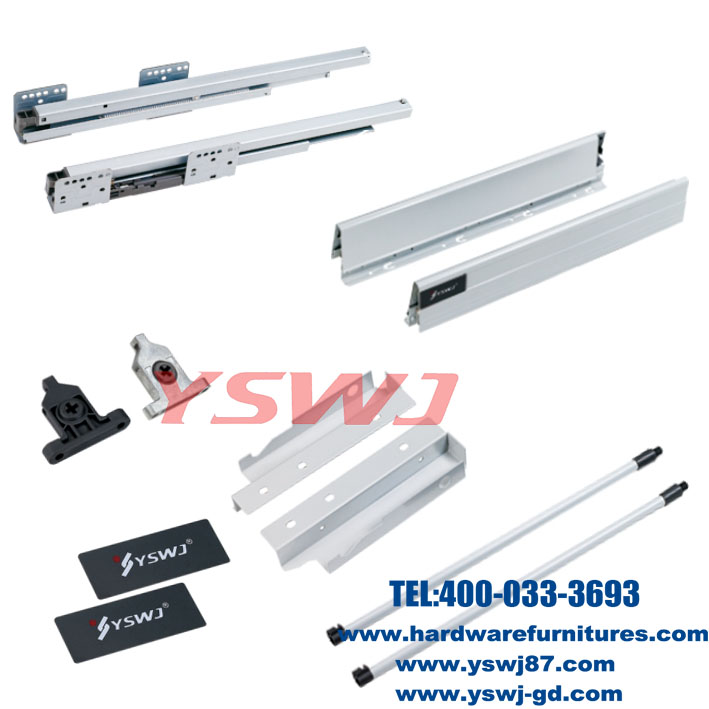

Parts and Components
.jpg)
| Model | YS7013-600 Panel with handle of internal drawer | YS7013-1100 Panel with handle of internal drawer |
| Material | Aluminum, baking finish | |
| Length | 600mm | 1100mm |
| Cutting size | Internal width of cabinet - 85mm | |
| Packing | 100pcs | |
| Model | YS703-0301 |
| Material | Engineering plastic |
| Packing | 200pcs |
| Model | YS703-0302 Support of transverse draw rod |
| Material | Engineering plastic |
| Packing | 50pcs |
.jpg)
| Model | YS702C-600 Transverse draw rod | YS702C-1200 Transverse draw rod |
| Material | Aluminum, baking finish | |
| Length | 600mm | 1200mm |
| Packing | 50pcs | |
| Cutting size | Internal width of cabinet - 60mm | |
| Model | YS231 L/R Separators |
| Material | Engineering plastic |
| Packing | 200pcs |
| Cabinet Width | Recommendation of using count |
| 275mm-500mm | 4 pcs |
| 550mm-700mm | 6 pcs |
| 800mm-1000mm | 8 pcs |
| 1200mm | 10 pcs |
| Model | YS232 L/R Double-rod fixtures |
| Material | Engineering plastic |
| Packing | 200pcs |
| Cabinet Width | Recommendation of using count |
| 275mm-500mm | 4 pcs |
| 550mm-700mm | 4 pcs |
| 800mm-1000mm | 4 pcs |
| 1200mm | 4 pcs |
