Perfect match C
Product category: Concealed drawer slide
Hotline: 86-757-82629362
Model: Perfect match of components 3
Email:yswj@yswj-gd.com

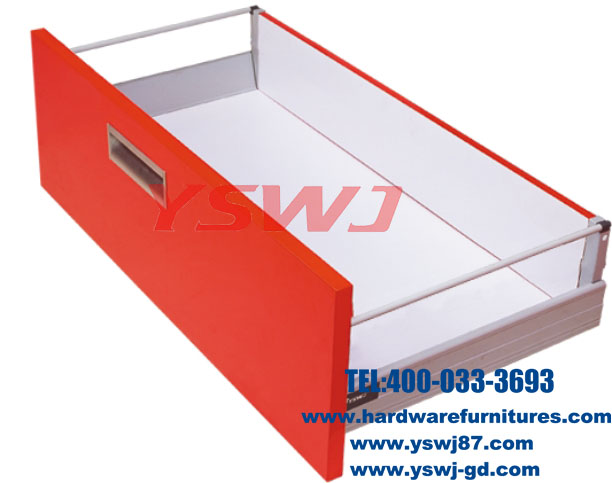

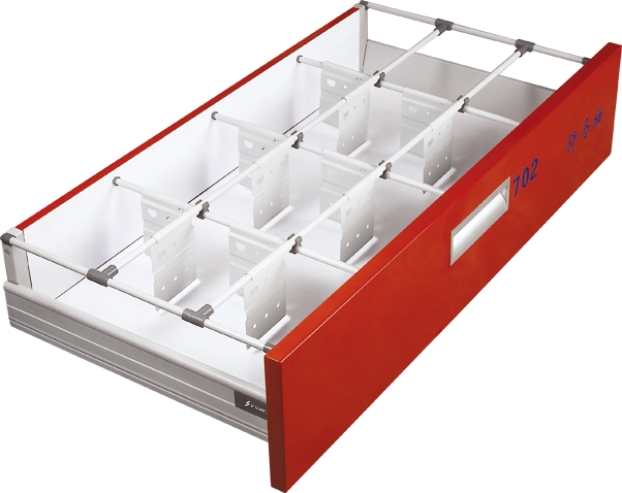

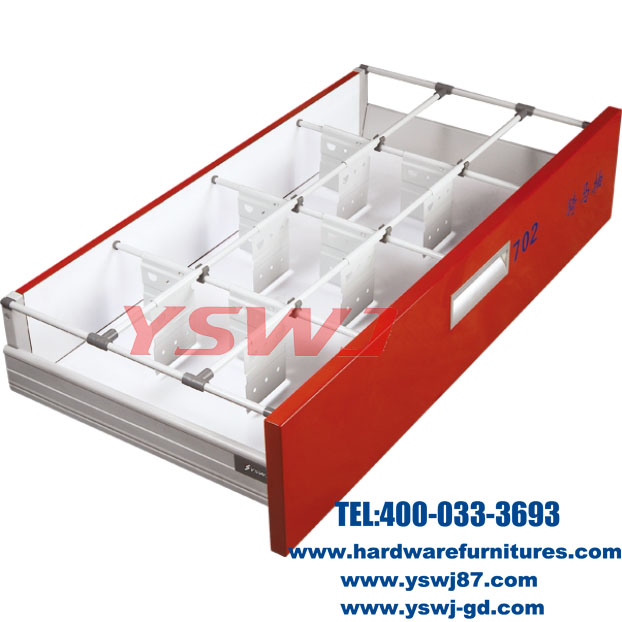

Assembly Photo
.jpg)
Parts and Components
.jpg)
| Model | YS702E Short rod |
| Material | Aluminum, baking finish |
| Length | 350mm-550mm |
| Packing | 20sets |
.jpg)

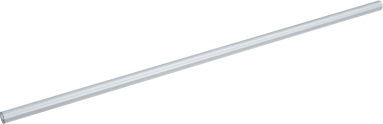

| Model | YS702C L/R Transverse draw rod |
| Material | Aluminum, baking finish |
| Length | 1200mm |
| Packing | 100pcs |
| Cutting size | Internal width of cabinet - 60mm |
| Model | YS702B Separator |
| Material | Iron, baking finish |
| Packing | 50pcs |
| Cabinet width | Recommendation of using count |
| 450mm-600mm | 2 pcs |
| 700mm-800mm | 4 pcs |
| 900mm-1000mm | 6 pcs |
| 1200mm | 6 pcs |
| Model | YS230 Cross connections |
| Material | Engineering plastic |
| Packing | 200pcs |
| Model | YS233 L/R Rod fixtures |
| Material | Engineering plastic |
| Packing | 200pcs |
