Yongsheng Furniture Fittings Co.,Ltd

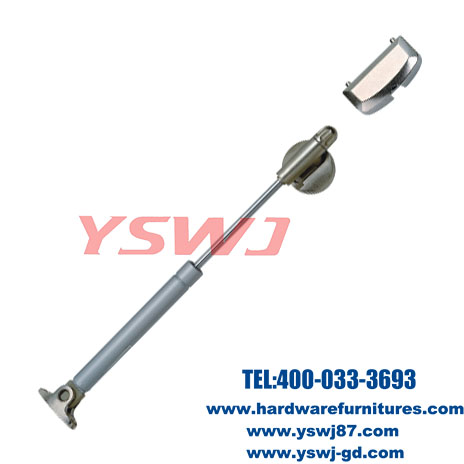

Gas strut YS616-B

Product category: Cabinet support
Hotline: 86-757-82629362
Model: YS616-B
Fax:

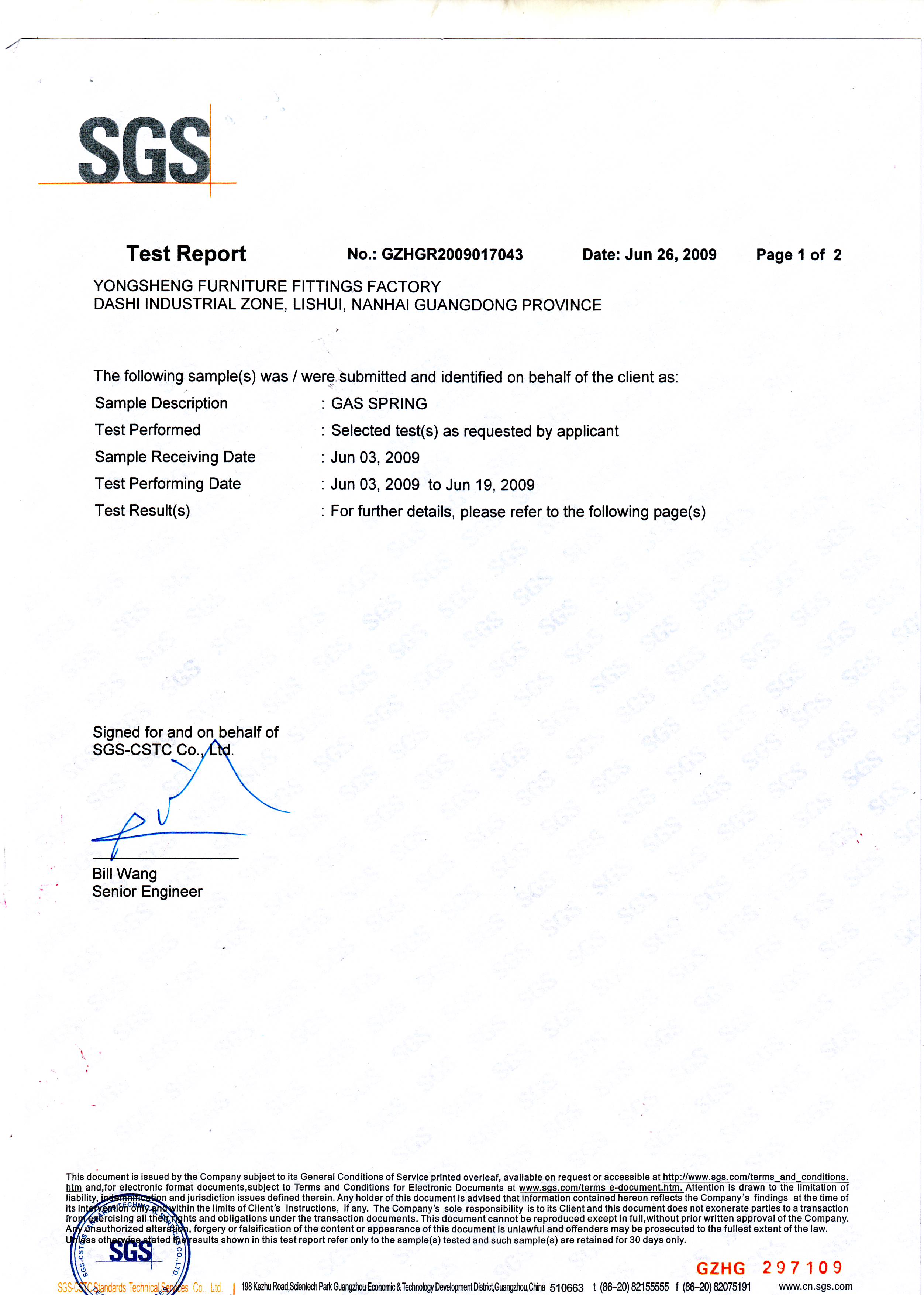

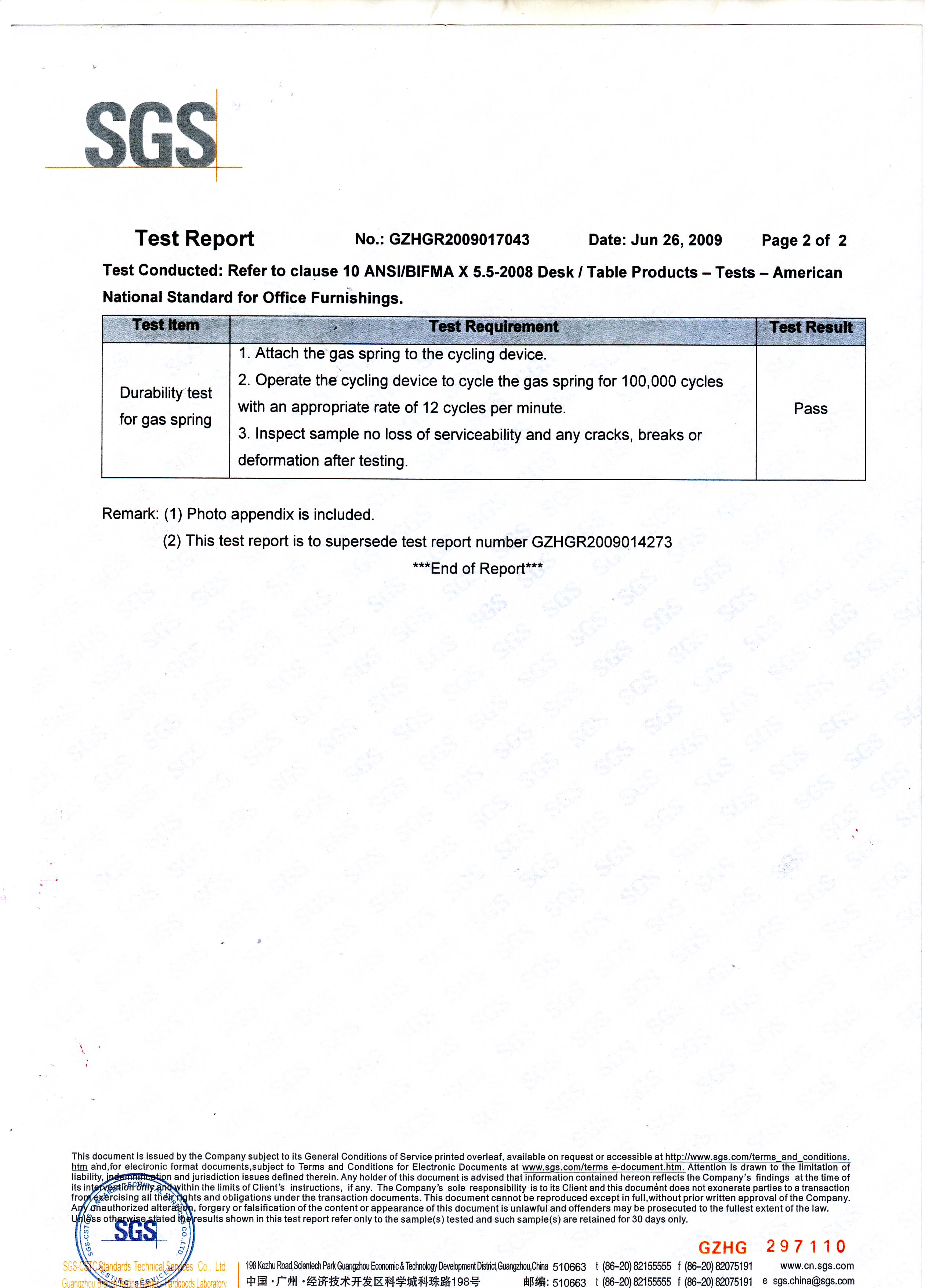

A、Pass SGS test over 100,000times, attenuation less than 10% after 100,000cycles
B、Finish: metallic paint, scratch resistance, NSS 8grade/48h
C、aluminum frame and glass door is achieved

soft stop gas spring




soft stop gas strut


Product Description:

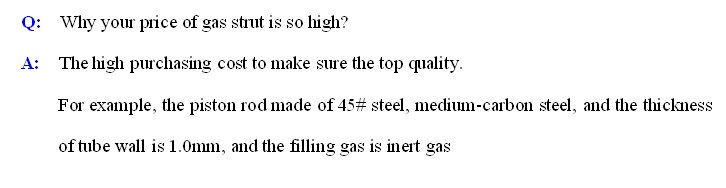

Acylinder: seamless steel pipe20#, Φ 15*1mm



Bpiston rod: steel 45#, Φ 6mm



Cpiston: brassH62,



Dsealing parts: O-ring fluoro rubber,



Eend fittings: PA66,



Fgas: nitrogen,



Gaircraft hydraulic oil ( still work well below 58°)





Features:

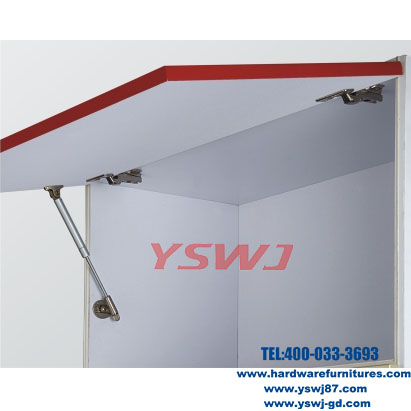

A、upward opening, two way

    way 1:  up-opening to 30°,the door lift up gently by itself.
    way 2:  the door slow down to complete opening when the angle ups to 80°。

B、closing: down-closing to 50°,the door full close by itself

C、Compare with YS616-A adjustable gas spring, whose plates are different.





Product advantages:

A、Pass SGS test over 100,000times, attenuation less than 10% after 100,000cycles
B、Finish: metallic paint, scratch resistance, NSS 8grade/48h
C、aluminum frame and glass door is achieved





Product parameters:

A、Application: for all up-opening door, still work well between -50°~ 80°

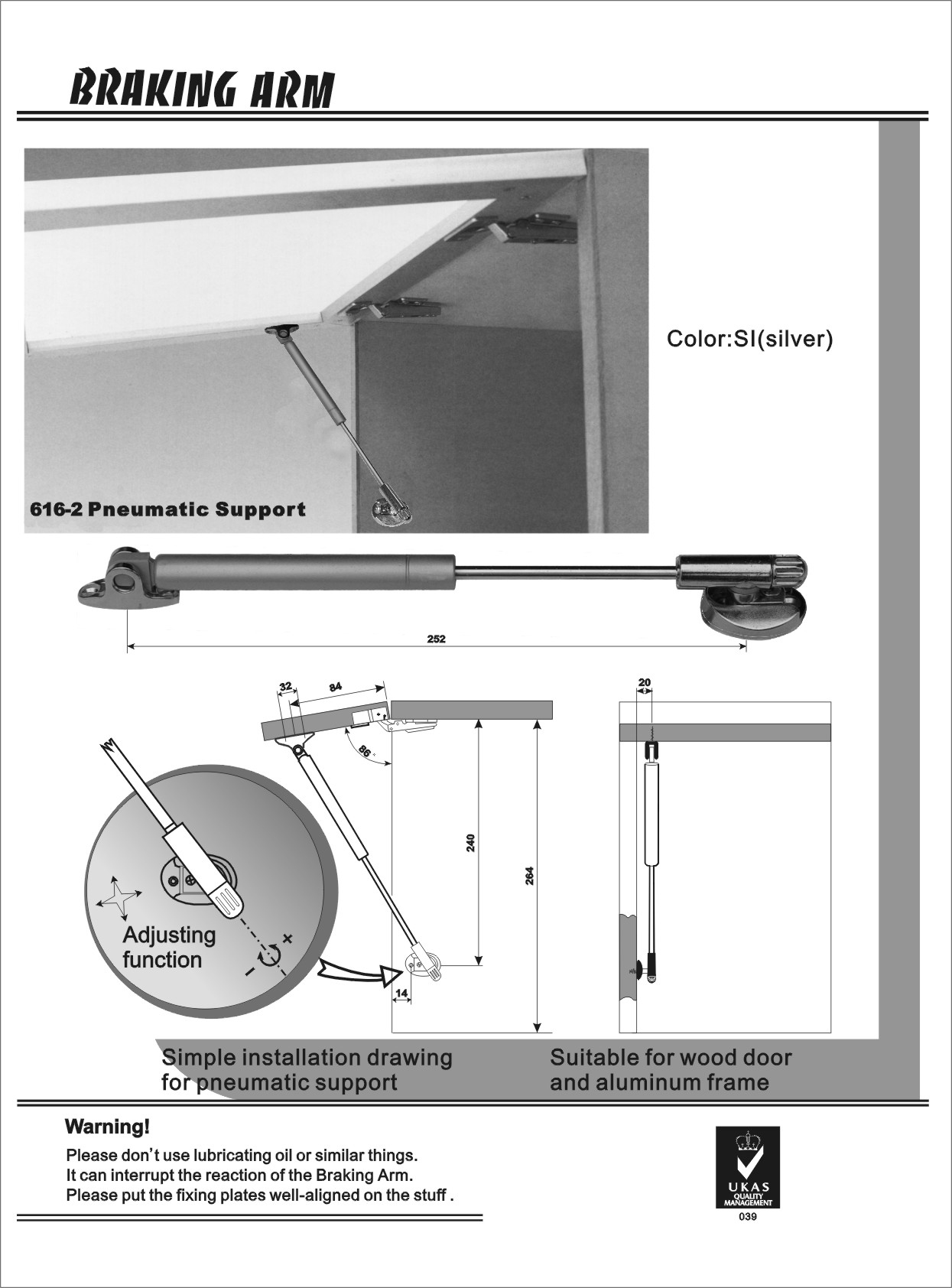

B、Installation conditions:

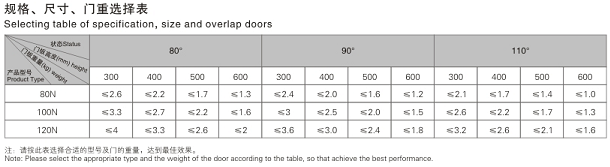

   a、different choice according to the door weight and door height
   b、over 600cm * 400cm, paired using is the best





Others (Packing and services):
Package: 10pcs/inner box,100pcs/box,N.W/G.W: 20kgs/20.5kgs
MEAS: 34.5cm * 33.2cm * 29.5cm
Delivery Date: Normally in one month
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days,UPS3-5days,Fedex/TNT 3-5days,EMS 7days reach destination )
