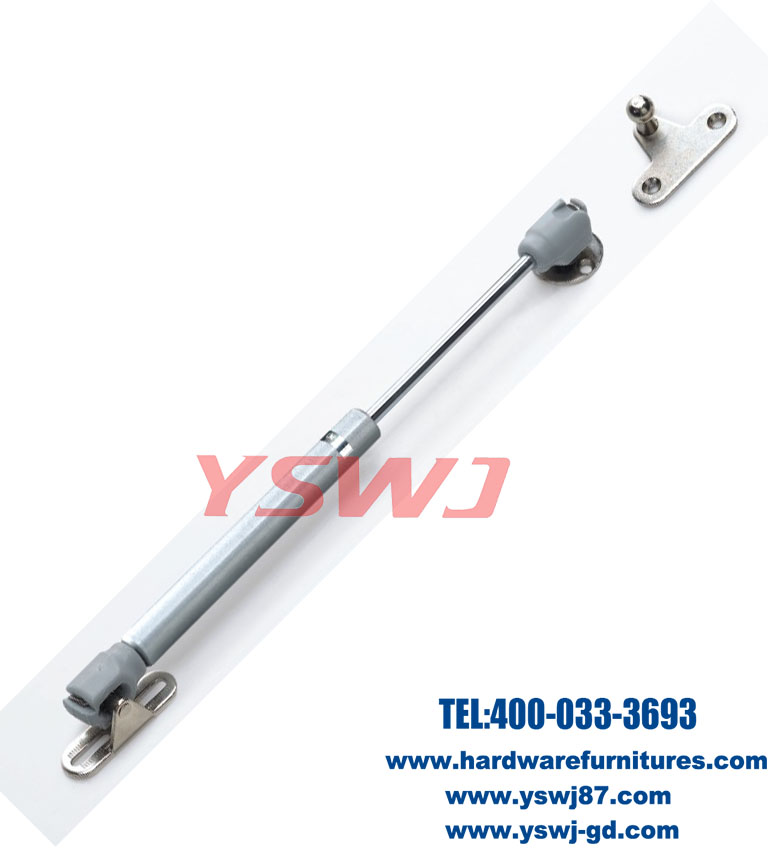

Product Description:

A、cylinder: seamless steel pipe20#, Φ 15*1mm,

B、piston rod: steel 45#, Φ 6mm,

C、piston: brassH62,

D、sealing parts: O-ring fluoro rubber,

E、end fittings: PA66,

F、gas: nitrogen,

G、aircraft hydraulic oil ( still work well below 58°).

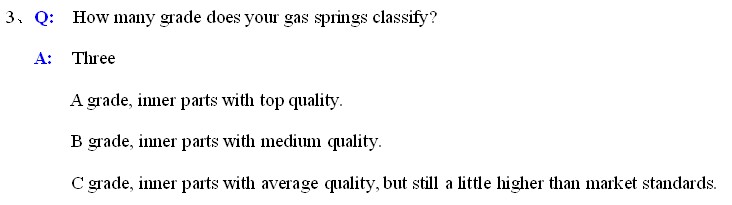

Difference among A Garde, B Garde, and C Grade

A、They look the same.

B、

Features：

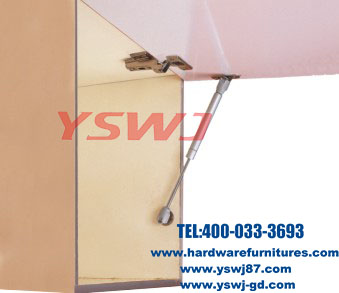

A、upward opening, two stays

   stay 1:  up-opening to 30°,the door lift up by itself.

   stay 2:  the door slow down to full opening when the angle up to 80°。

B、closing:

   down-closing to 50°，the door full close by itself

Product Advantages：

A、Pass endurance test over 80,000times, attenuation less than 10% after 80,000cycles.

B、Finish: metallic paint, scratch resistance, NSS 8grade/48h.

C、aluminum frame and glass door is achieved.

Product Parameter：

A、Application: for all up-opening door, still work well between -50°~ 80°.

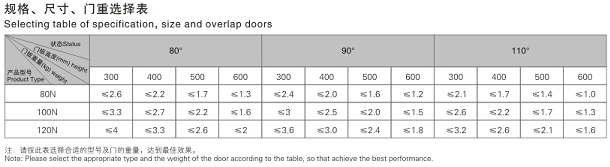

B、Installation conditions: Pls refer to the attached table below.

   a、different choice according to the door weight and door height.

   b、over 600cm * 400cm, paired using is the best.

Others（Packing and Services）：

Package: 10pcs/inner box，100pcs/box,

N.W/G.W: 15.5kgs/16.15kgs

MEAS: 34.5cm * 33.2cm * 29.5cm,

Delivery Date: Normally in one month

Samples Preparation: samples can be sent in 3 working days (DHL 3-5days，UPS3-5days，Fedex/TNT 3-5days，EMS 7days reach destination )

Features：

A、upward opening, two way

   way 1:  up-opening to 30°,the door lift up by itself.

   way 2:  the door slow down to full opening when the angle up to 80°。

B、closing:

   down-closing to 50°，the door full close by itself

Product Parameter：

A、Application: for all up-opening door, still work well between -50°~ 80°

   a、different choice according to the door weight and door height.

   b、over 600cm * 400cm, paired using is the best.

B、Installation conditions: Pls refer to the attached table below

Product Advantages：

A、Pass endurance test over 80,000times, attenuation less than 10% after 80,000cycles

B、Finish: metallic paint, scratch resistance, NSS 8grade/48h

C、aluminum frame and glass door is achieved

Others（Packing and Services）：

Package: 10pcs/inner box，100pcs/box,

N.W/G.W: 15.5kgs/16.15kgs

MEAS: 34.5cm * 33.2cm * 29.5cm,

Delivery Date: Normally in one month

MOQ:  3000pcs

Samples Preparation: samples can be sent in 3 working days (DHL 3-5days，UPS3-5days，Fedex/TNT 3-5days，EMS 7days reach destination )
