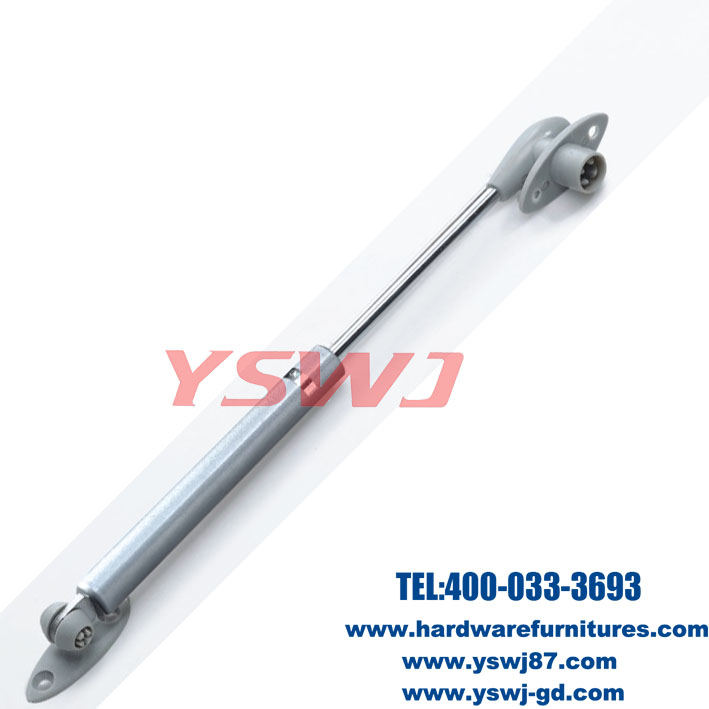

Gas strut YS611
Product Description：
A、cylinder: seamless steel pipe20#, Φ 15*1mm B、piston rod: steel 45#, Φ 6mm C、piston: brassH62, D、sealing parts: O-ring fluoro rubber, E、end fittings: PA66, F、gas: nitrogen, G、aircraft hydraulic oil ( still work well below 58°)
H、Plastic end fittings can withstand a pulling force of 1200 lbs.
Features：
A、upward opening, two stay
stay 1: up-opening to 30°,the door lift up by itself.
stay 2: the door slow down to full opening when the angle up to 80°。
B、closing: down-closing to 50°，the door full close by itself
Product Advantages：

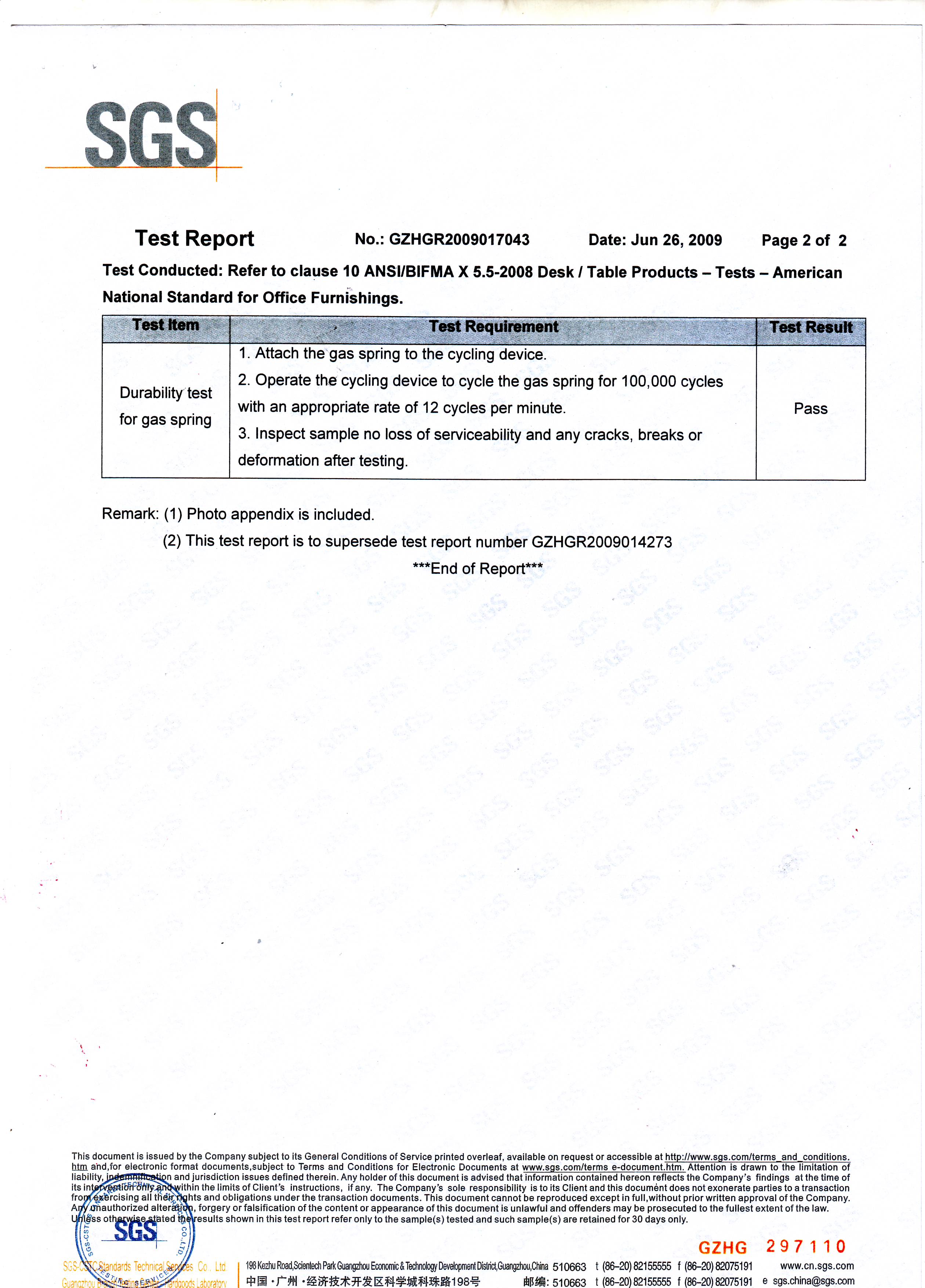

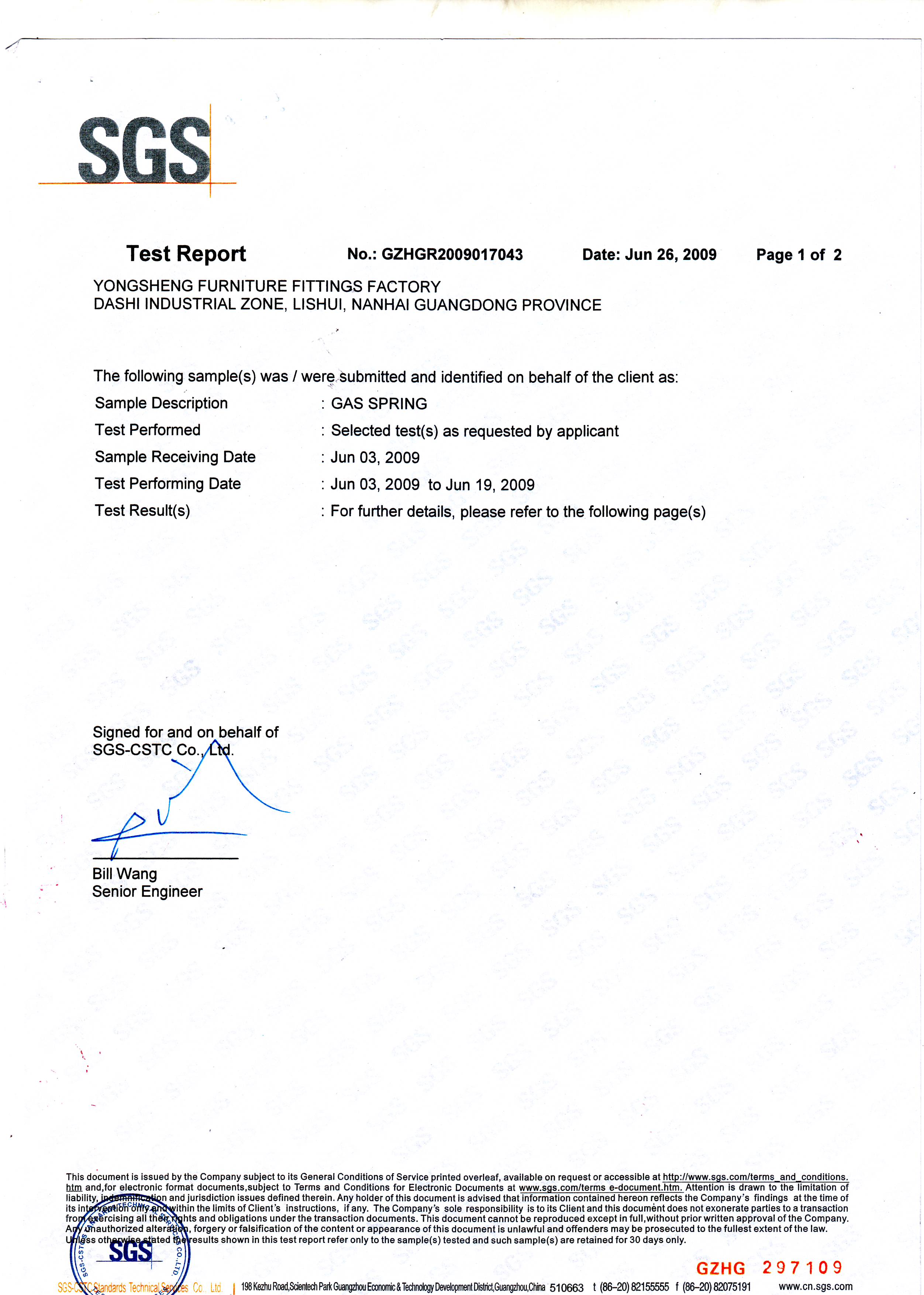

A、Pass SGS test over 100,000times, attenuation less than 10% after 100,000cycles
B、Finish: metallic paint, scratch resistance, NSS 8grade/48h
Product Parameter：
A、Application: for all up-opening door, still work well between -50°~ 80°

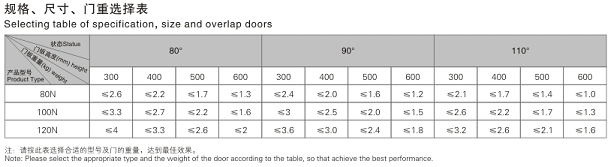

B、Installation conditions: Pls refer to the attached table below
a、different choice according to the door weight and door height.
b、over 600cm * 400cm, paired using is the best.
.png)
Others（Packing and Services）：
Package: 10pcs/inner box，100pcs/box,
N.W/G.W: 16.64kgs/18.502kgs
MEAS: 34.5cm * 33.2cm * 29.5cm,
Delivery Date: Normally in one month
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days，UPS3-5days，Fedex/TNT 3-5days，EMS 7days reach destination )
.JPG)
.JPG)
.jpg)
.jpg)
