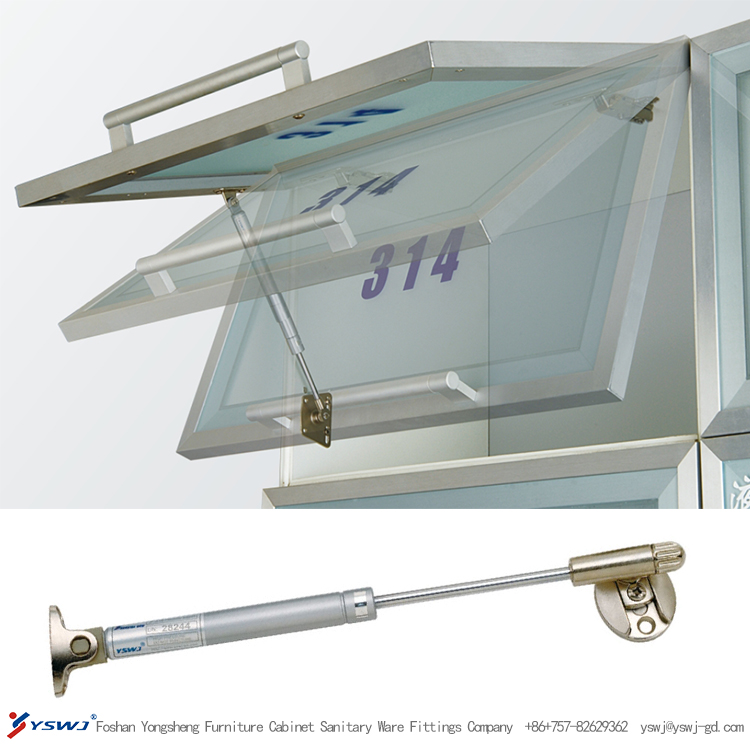

Free Stop Gas strut YS314-1

Product category: Cabinet support
Hotline: 86-757-82629362
Model: YS314-1
Fax:
Free Stop Gas strut YS314-1 A、Up opening to 35°, the door free stop at every point
B、The opening angle can be adjustable up and down after assembly.
C、Better for labor-saving
D、Easy to disassemble

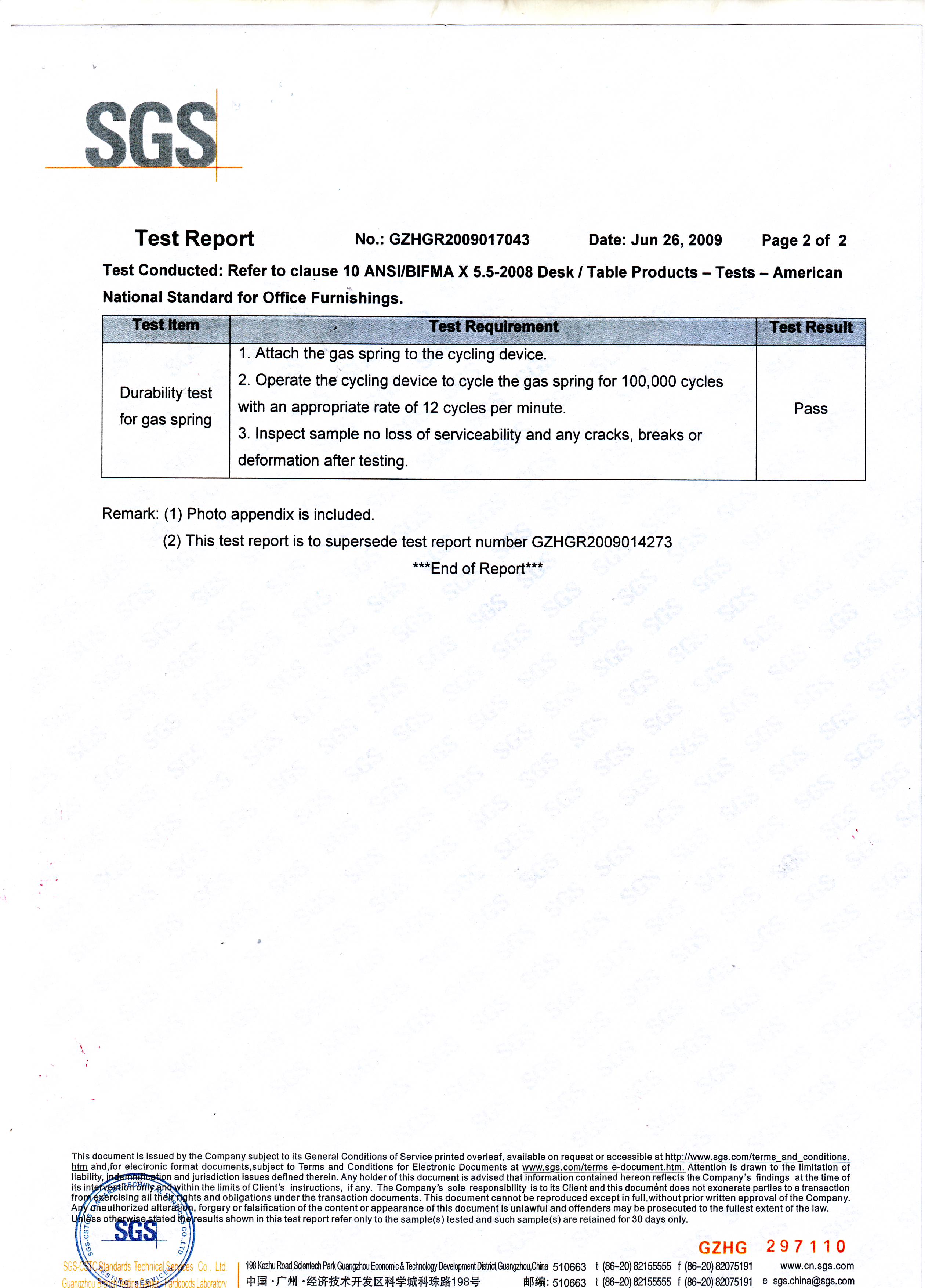

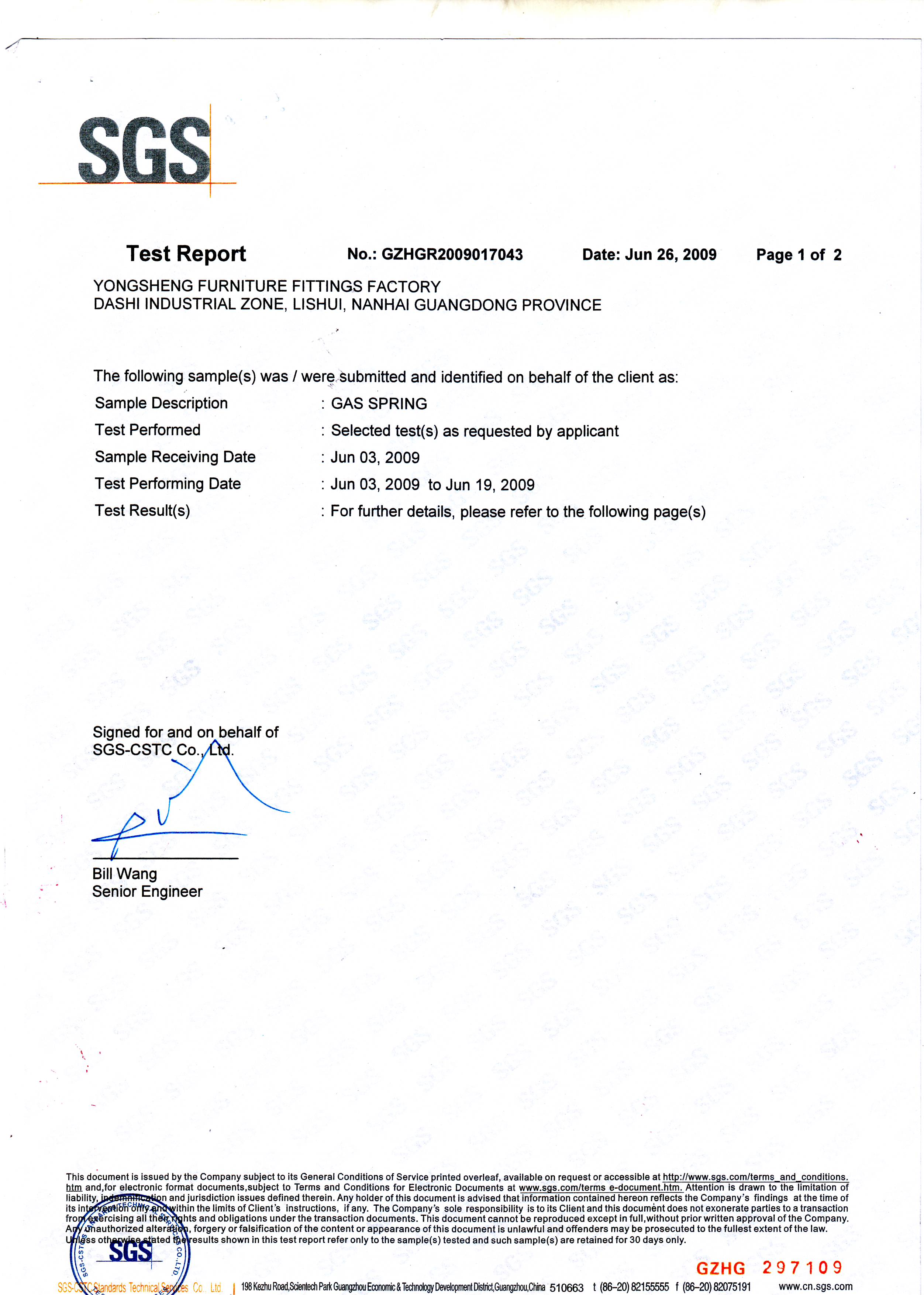

E、Pass SGS test over 100,000times, attenuation less than 10% after 100,000cycles

Free Stop Gas strut YS314-1




Product Parameters:

A、Application: for all up-opening door, still work well between -50°~ 80°

B、Installation conditions:

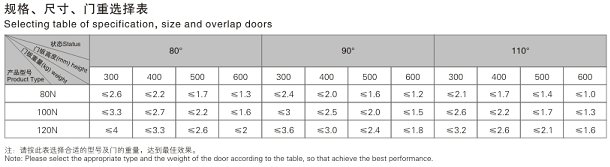

   a、different choice according to the door weight and door height.
   b、over 600cm * 400cm, paired using is the best





Product Description:

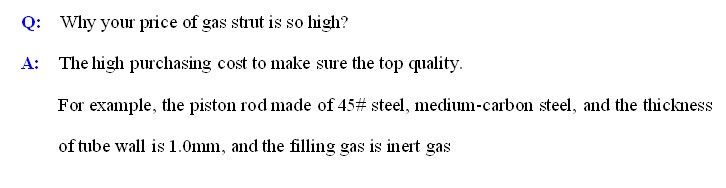

A、cylinder: seamless steel pipe20#, Φ 15*1mm

B、piston rod: steel 45#, Φ 6mm

C、piston: brassH62,

D、sealing parts: O-ring fluoro rubber,

E、end fittings: PA66,

F、gas: nitrogen,

G、aircraft hydraulic oil ( still work well below 58°)



Features:

A、Up opening to 35°, the door free stop at every point
B、The opening angle can be adjustable up and down after assembly.
C、Better for labor-saving
D、Easy to disassemble
E、Compare with
Free stop Gas springs strut YS314-2,which differ from fittings



Product Advantages:

A、Pass SGS test over 100,000times, attenuation less than 10% after 100,000cycles
B、Finish: metallic paint, scratch resistance, NSS 8 grade/48h
C、Different end fittings like YS611, YS612, YS616 for your chioce
D、aluminum frame and glass door is achieved
