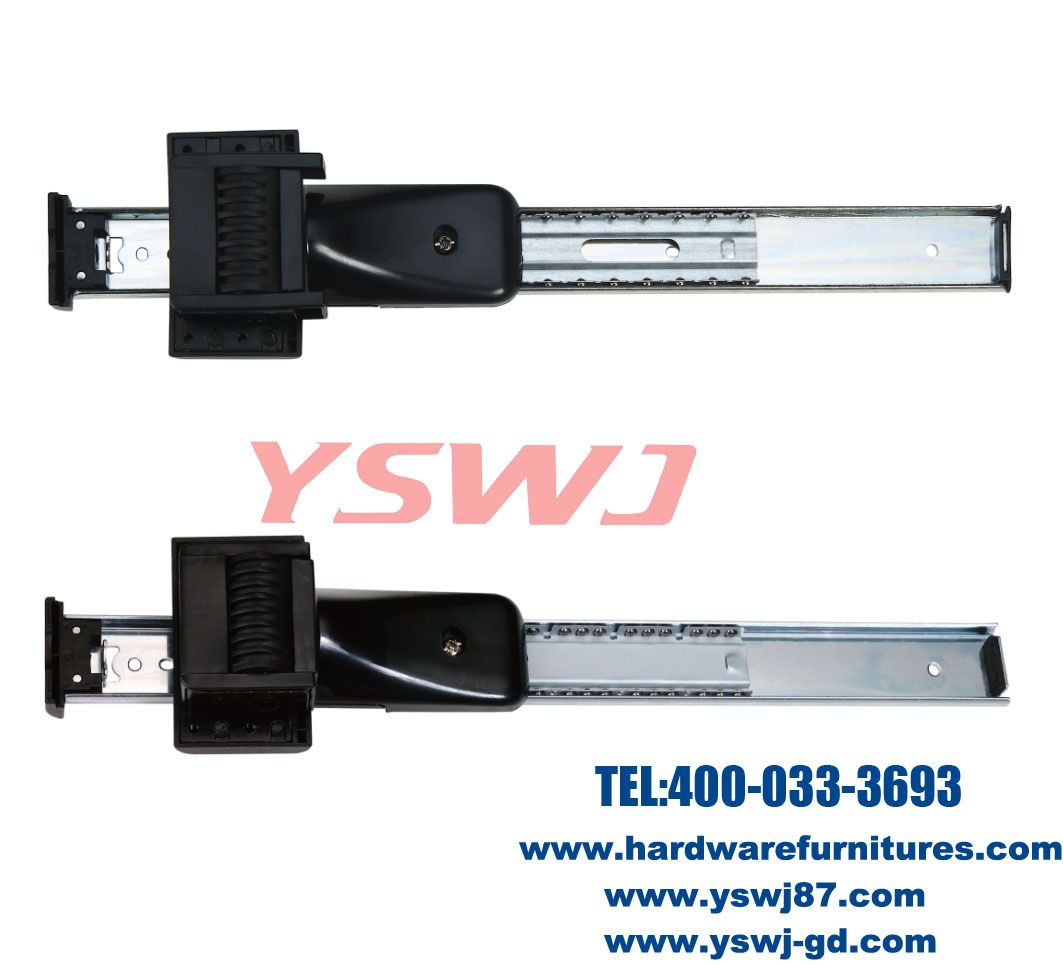

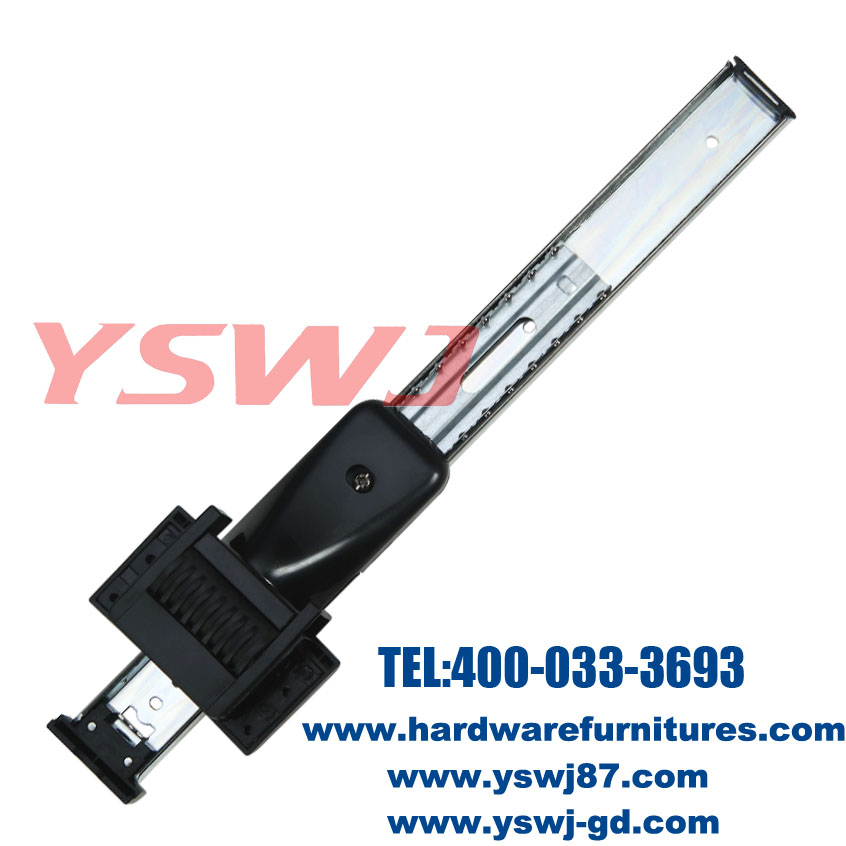

Soft closing slide mechanism YS336A
.jpg)
.jpg)
Apperance Design Patent and Utility Model Patent
.jpg)
Product Description：
A、Material：plastic POM、ABS、PA66、Zinc alloy、ZnAI4、 cold-rolled steel Q235、 resistance oil、spring steel 65Mn
B、Finish：black plastic，black electrophoretic, blue zinc-plated
Features：

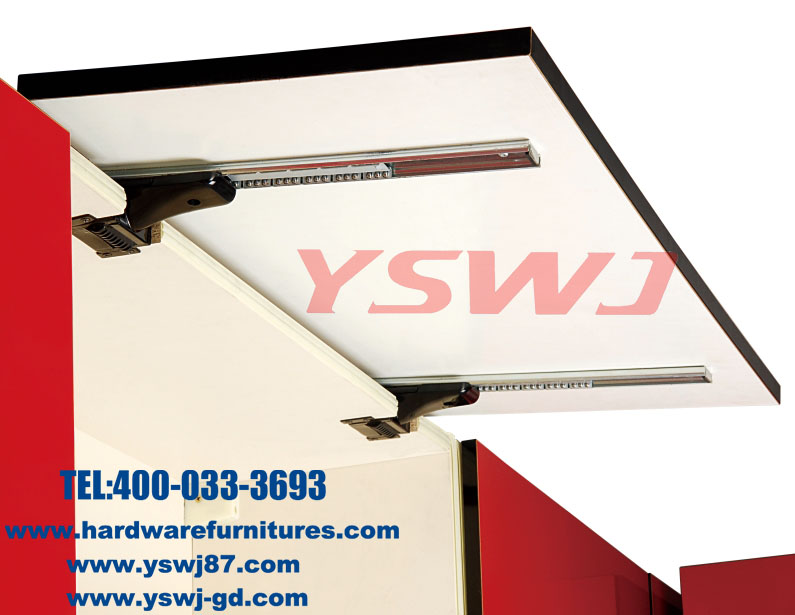

A、Upward opening to 90°, the door can keep stay still, sliding smoothly along the slide track by pushing
B、Better for space-saving
C、Soft closing without slam
D、Compare with YS336-B cabinet inside smooth slide which conceals inside the cabinet
Product Advantages：
A、space-saving, soft closing.
B、Adjustment is achieved by turning the screw to choose the closing speed.
C、Application: for filling cabinet, top tank.
Product Parameters：
A、Door height 360-450mm
B、Type: light duty 3-5kgs, heavy duty 5-7kgs
C、Length of slide: 350mm
D、Cycles: 30,000times
E、Pls refer to the illustration below
Others（Packing and Services）：
Package: 1set/inner box，10sets/box,
N.W/G.W: 11.3kgs/12.85kgs
MEAS: 39.2cm * 20.2cm * 32.5cm,
Delivery Date: Normally in one month
MOQ: 500sets
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days，UPS3-5days，Fedex/TNT 3-5days，EMS 7days reach destinatination
