Hinge T3899-2B

Product category: Hinge

Hotline: 86-757-82629362

Model: T3899-2B

Email:yswj@yswj-gd.com

A、Easy to assemble, 3-D adjustment is achieved. B、Two way, less slam when closing C、24h/48h/72h corrosion resistance to pass SGS salt spray test can be achieved according to your requirements D、cycles: over 50,000times

Detail Feature&Parameters Advantages SGS/Patent FAQ Others

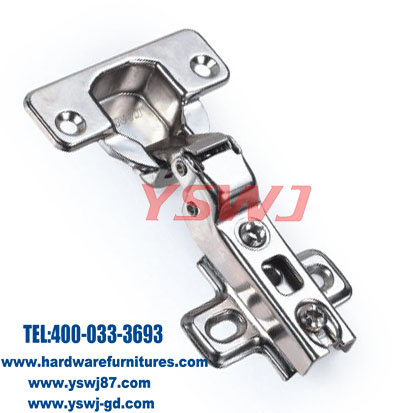

door hinge

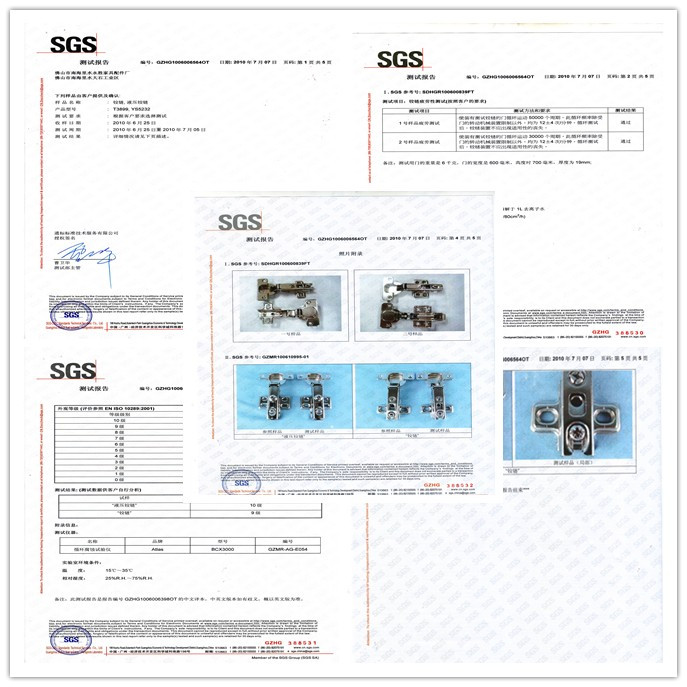

SGS Certificate

Product Description：

A、Material: steel(cold rolled steel Q235, SK7 )
B、Mounting plates: two holes, four holes and heightening mounting plate can be available.
C、Finish：plated（brass + nickel + sealing）

Features：

A、Easy to assemble, 3-D adjustment is achieved.
B、Two way, less slam when closing

Product advantages:

24h/48h/72h corrosion resistance to pass SGS salt spray test can be achieved according to your requirements

Product Parameters：

cycles: over 50,000times

opening angle: 110°

kitchen hinge

depth of cup: 11.5mm

diameter of cup: 35mm,c.c. 48mm

flap hinge

Others (Packing and services)：

Package: 200pcs/box,N.W/G.W: 15.35kgs/15.6kgs
MEAS: 39cm * 30cm * 20cm,
Delivery Date: Normally in one month
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days，UPS3-5days，Fedex/TNT 3-5days，EMS 7days reach destination )
