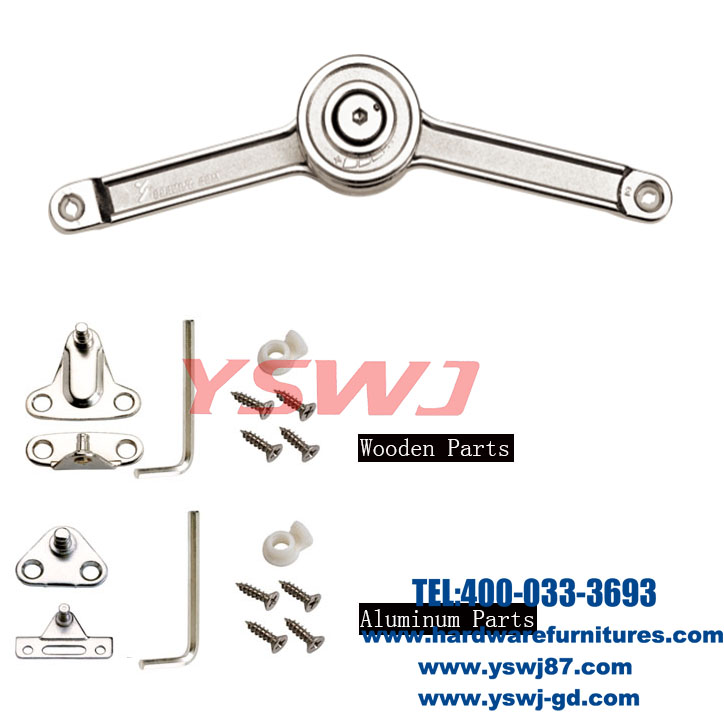

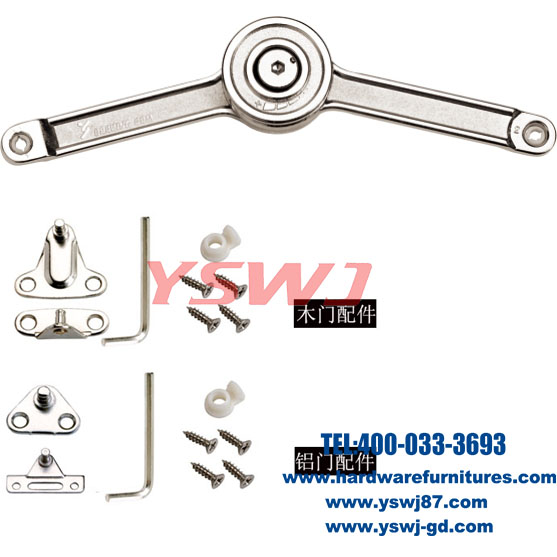

Flap stay YS312
.jpg)

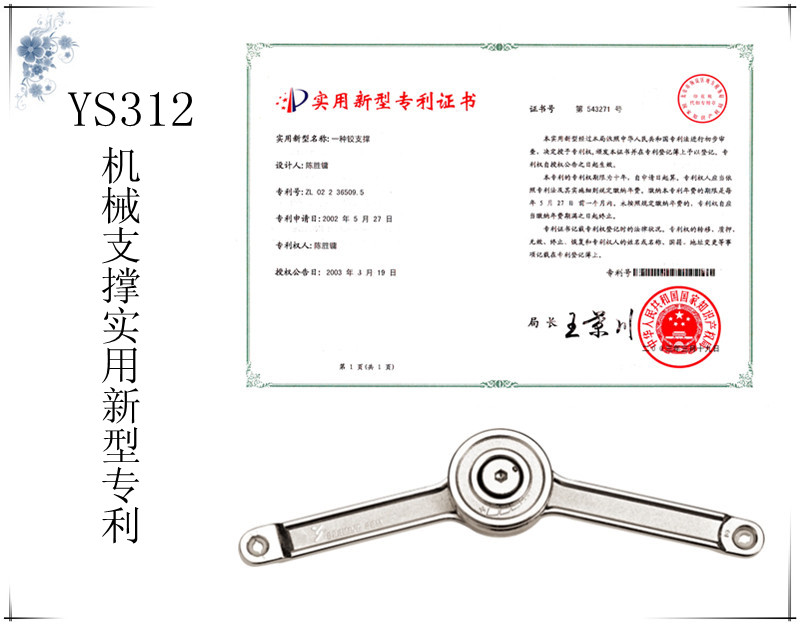

Own Utility Model Patent Certificate
.jpg)
Product Description：
A、Material：plastic POM、Zinc alloy、 cold-rolled steel Q235、 PA66、spring 65Mn
B、Finish：plated（brass + nickel + sealing） , polish, heat treatment
Features：
A、Upward opening to 35°, free stop at any position you want.
B、Adjustment according to the door weight is achieved to get a better function.
Product Advantages：
A、Using wheel gear inside to avoid skiding , free stop at any position you want.
B、Having a good stability, opening for a labor-saving, closing without noise.
C、YS312 passed 50,000 cycles durability test which is far beyond the CNS requirements of hinge- 40,000 times.

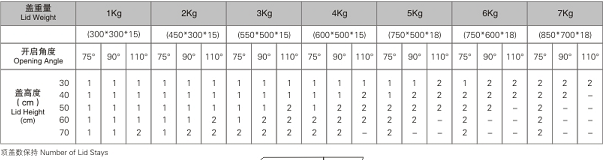

Product Parameter：
Pls refer to the illustration below
.png)
Others（Packing and Services）：
Package: 25pcs/inner box，100pcs/box,
N.W/G.W: 20kgs/25.4kgs
MEAS: 32cm * 27.5cm * 23cm,
Delivery Date: Normally in one month
MOQ: 3000pcs Samples Preparation: samples can be sent in 3 working days (DHL 3-5days，UPS3-5days，Fedex/TNT 3-5days，EMS 7days reach destination )
Ps:
Difference between YS309, YS310, YS311 and YS312 flay stay:
(1) different design
(2) Internal structure:
YS309 flap stay---friction clutch inside
YS310 flap stay---steel ball and cam construction inside
YS311 flap stay---wheel gear inside
YS312 flap stay---wheel gear inside
