Current location: Home » Product Center » Hinge » Flap Hinge H3307

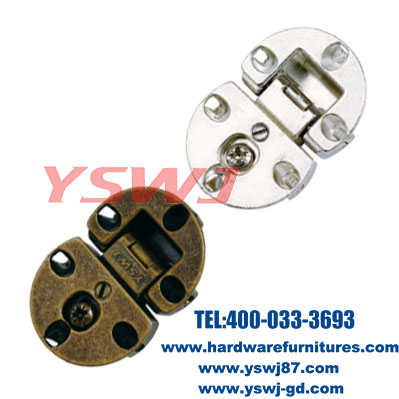

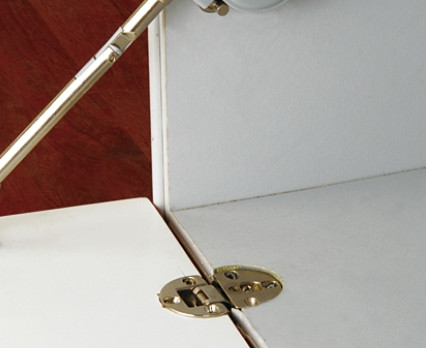

Flap Hinge H3307

Product category: Hinge
Hotline: 86-757-82629362
Model: H3307
Fax:
A、Down-opening to 90°is achieved..
B、Concealing assembly for a space-saving.
C、Application for down-opening door, different colour meet your requirements
D、16mm cranking,





folding hinge






 rolled hinge








Product Description:

A、Material:Zinc alloy、ZnAI4、 cold-rolled steel Q235
B、Finish:nickel plated
C、Green bronze and Red bronze is achived depending on the qty
D、With screws in normal



Features:

A、Down-opening to 90°is achieved.
B、Concealing assembly for a space-saving.
C、Using with YS316-D, YS610, YS319 to get the best function

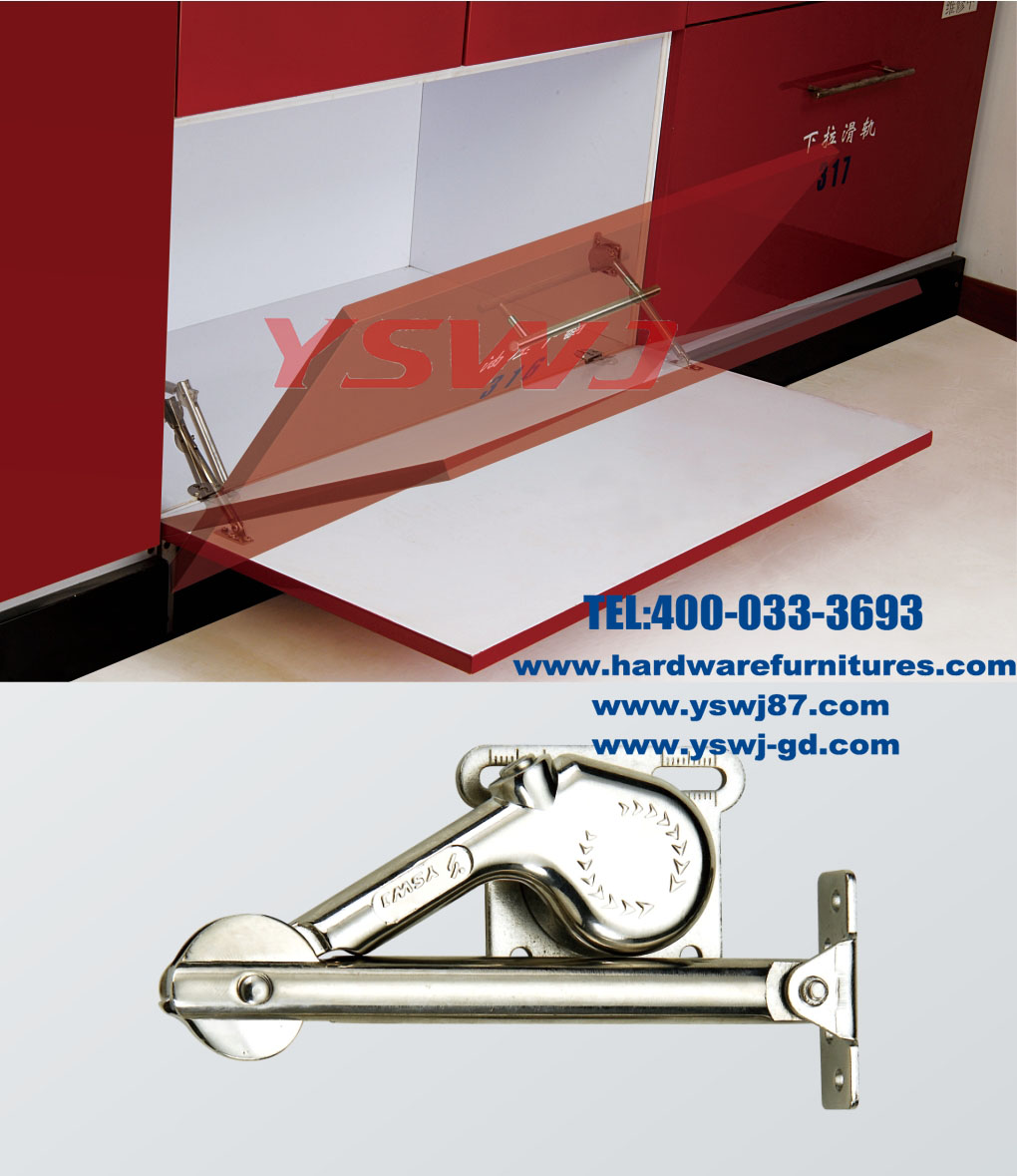

Soft Lid Stay  YS316-D



folding hinge

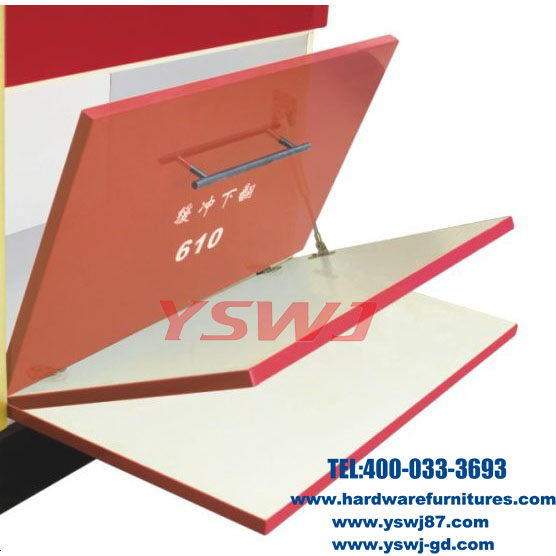

Down Opening Gas Strut  YS610



hinge

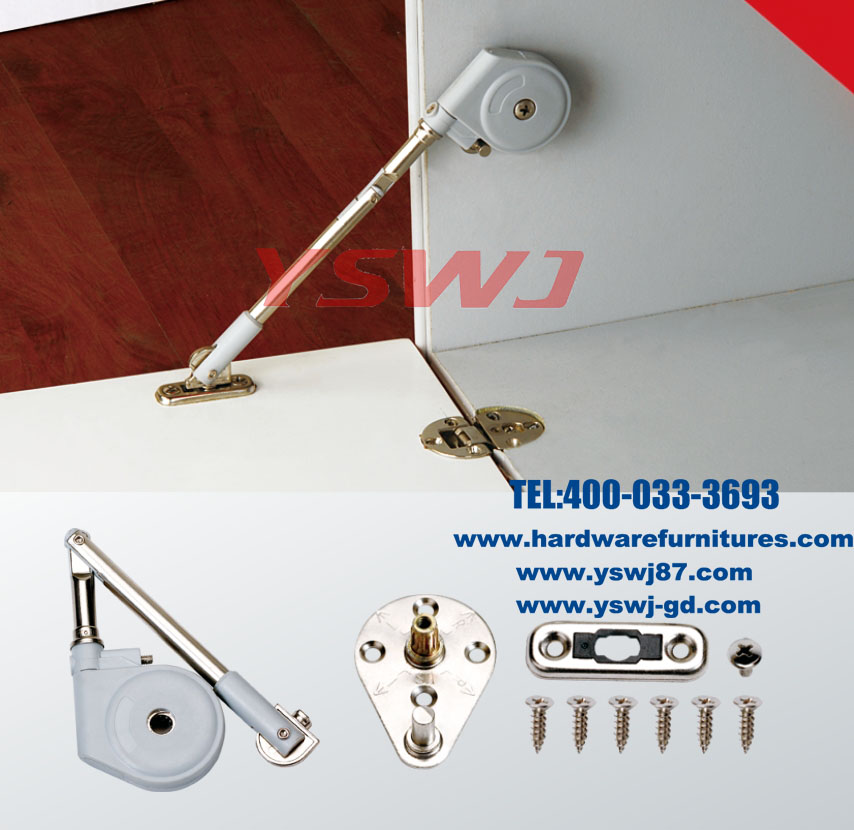

Soft Lid Stay  YS319



hinge




Product advantages:

A、Application for down-opening door, different colour meet your requirements
B、Easy to install, 16mm cranking



Product parameters:

diameter of the cup: 35mm
depth: 13mm
distance between two holes: 52mm
adjustable range: 3mm



Others (Packing and services):
Package: 200pcs/box,N.W/G.W: 16.6kgs/17.75kgs
MEAS: 34.2cm * 16.8cm * 18.4cm
Delivery Date: Normally in one month
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days,UPS3-5days,Fedex/TNT 3-5days,EMS 7days reach destination )
