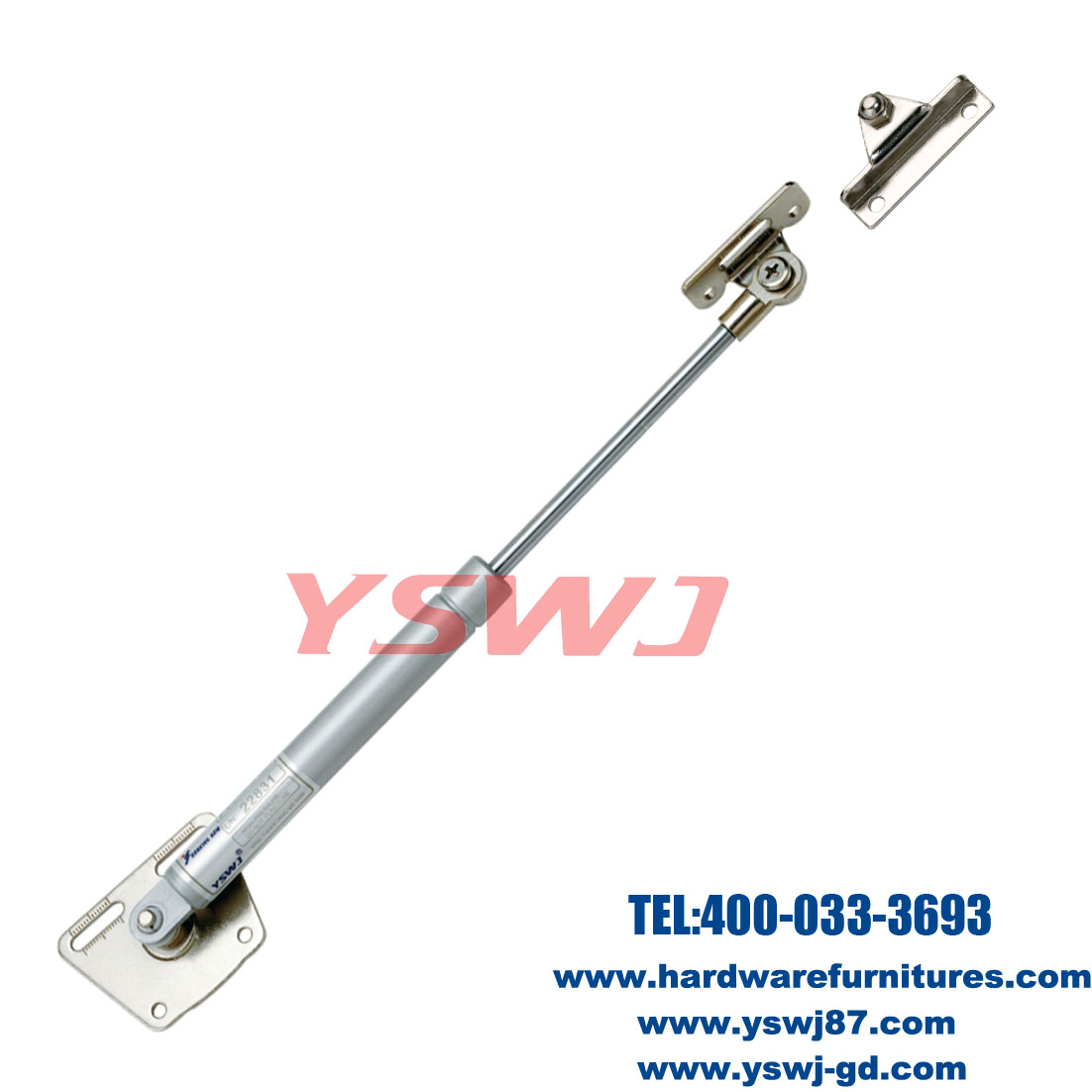

Down Opening Gas strut YS610
.jpg)
.jpg)
Product Description：
A、cylinder: seamless steel pipe20#, Φ 15*1mm
B、piston rod: steel 45#, Φ 6mm
C、piston: brassH62,
D、sealing parts: O-ring fluoro rubber,
E、end fittings: PA66,
F、gas: nitrogen,
G、aircraft hydraulic oil ( still work well below 58°)
Features：

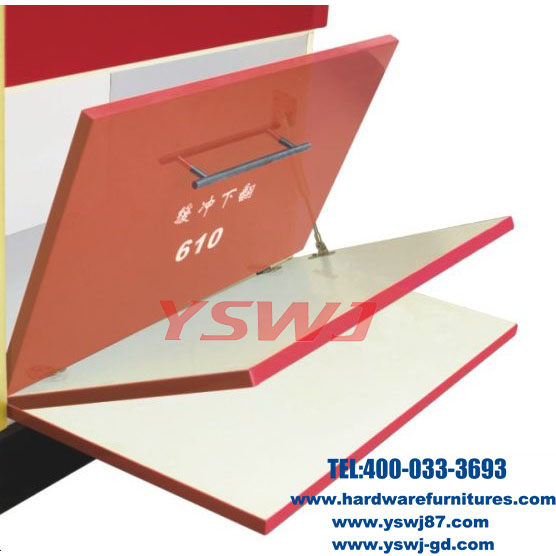

A、Downward opening to 90° automatically
B、Soft opening without slam
C、Closing with suction, no need to use soft close damper
Product advantages:

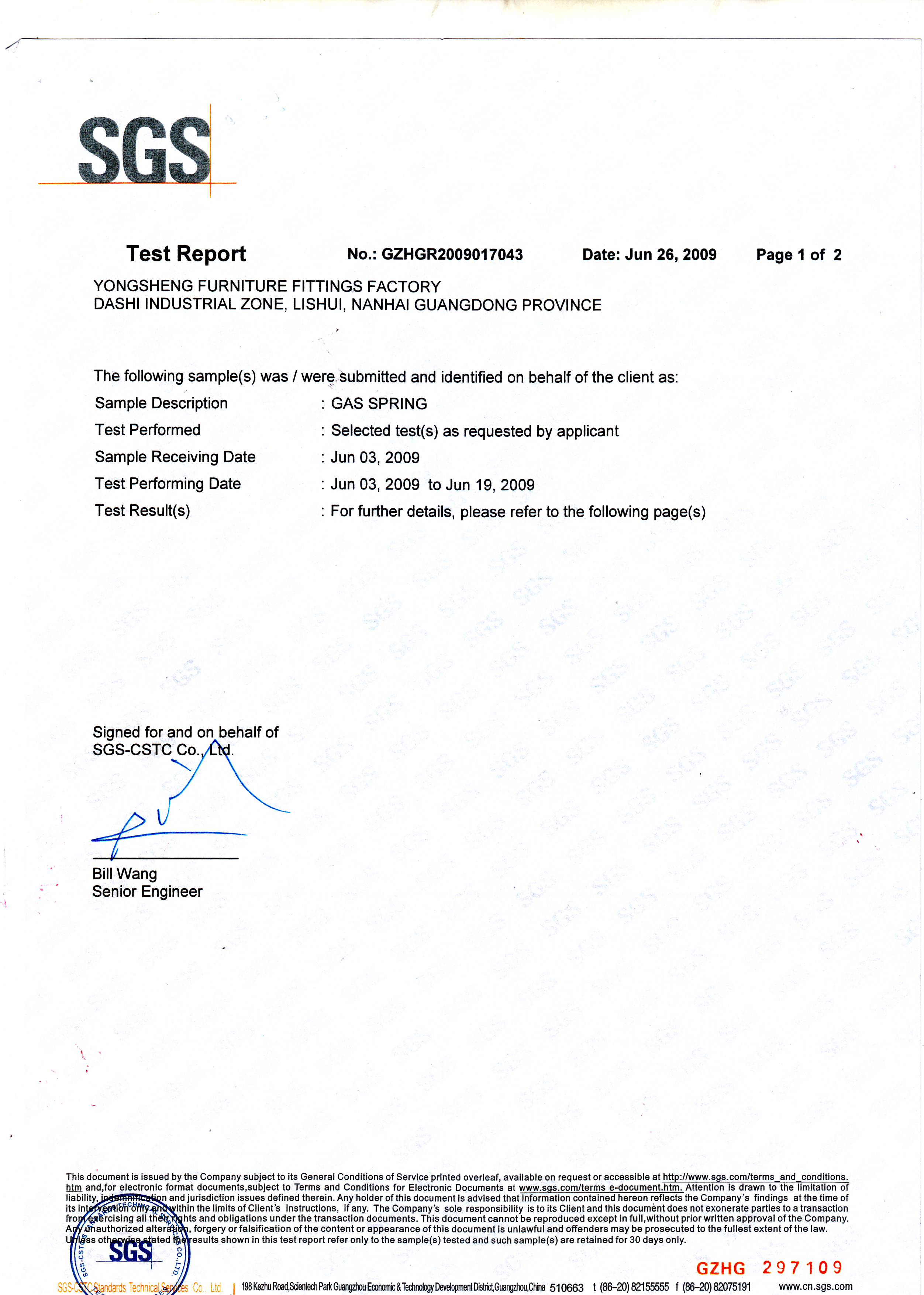

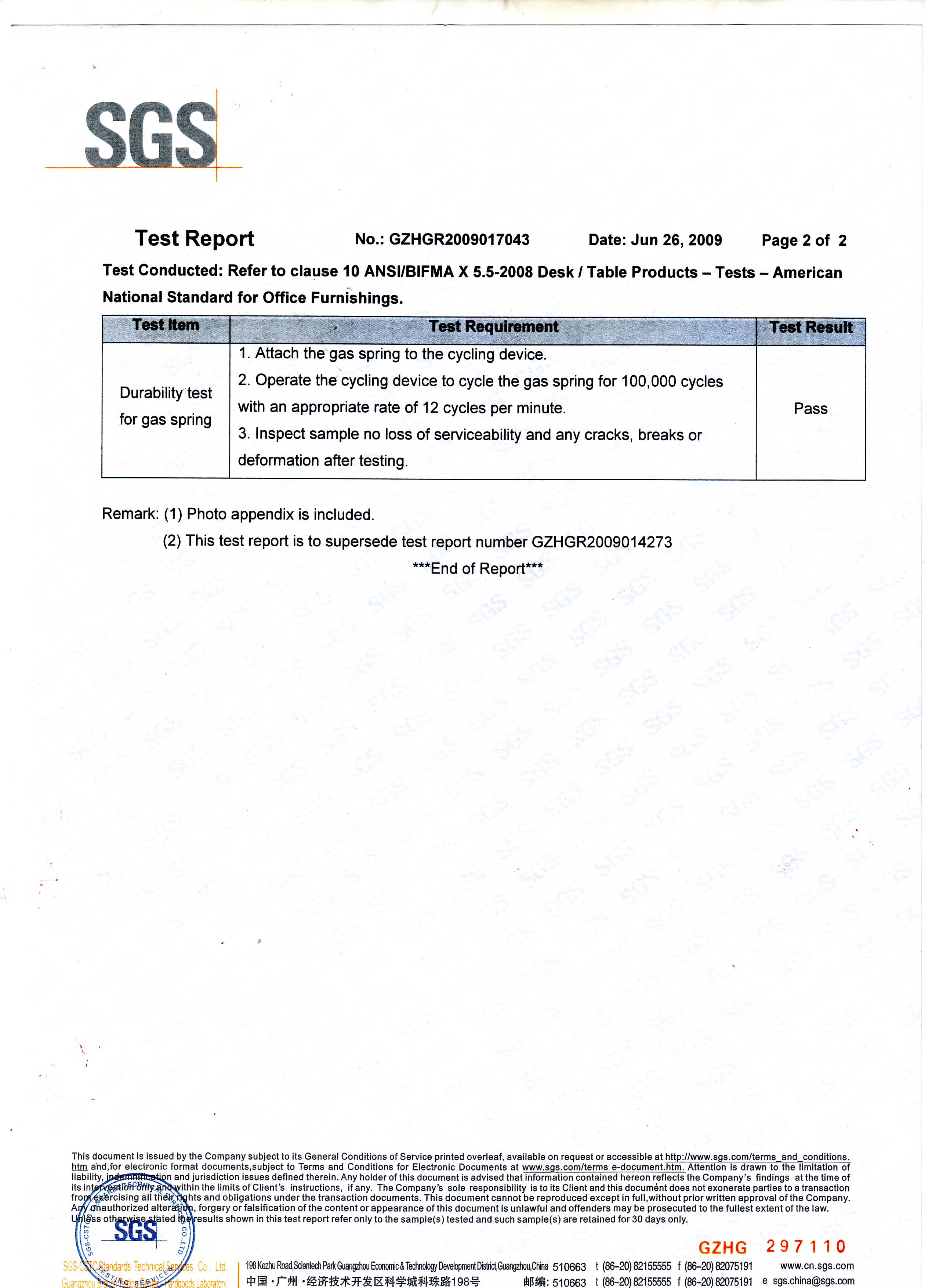

A、Pass SGS test over 100,000times, attenuation less than 10% after 100,000cycles
B、Finish: metallic paint, scratch resistance, NSS 8grade/48h
C、aluminum frame and glass door is achieved
Product parameters：
A、Application: for all down-opening cabinet and shoe wardrobe
B、Installation conditions:
max capacity: 3-5kgs/pc, paired using is achieved.
door height: 300-450mm
Others (Packing and services)：
Package: 10pcs/inner box，100pcs/box,N.W/G.W: 17.5kgs/19.29kgs
MEAS: 34.5cm * 33.2cm * 29.5cm,
Delivery Date: Normally in one month
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days，UPS3-5days，Fedex/TNT 3-5days，EMS 7days reach destination )
