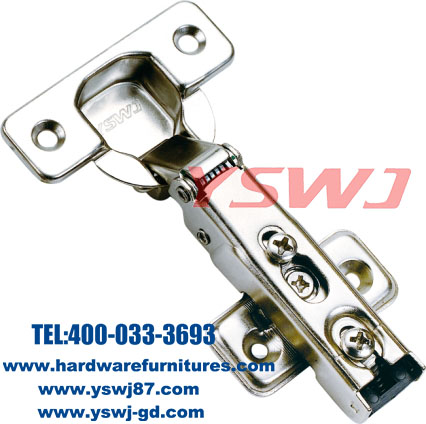

Clip-on Hinge C4530-2A
.jpg)
Product Description
A、Material: steel(cold rolled steel Q235、SK7 )
B、Mounting plates: two holes, four holes, heightening mounting plate can be available.
C、Finish：plated（brass + nickel + sealing）
D、With screws in normal
Product Features
A、Easy to assemble, 3-D adjustment is achieved.
B、Two way, soft closing without slam
Product Advantages
A、clip-on, easy to use
B、24h/48h/72h corrosion resistance to pass SGS salt spray test can be achieved according to your requirements
Product Parameters
A、Cycles: over 50,000times, Opening angle: 110°
B、Diameter of cup: 35mm, Depth of cup: 1.2mm, c.c: 45mm
C、Thickness of door part: 0.8mm
Thickness of body part: 1.2mm
Thickness of mounting plate: 1.2mm
Others ( Packing & Services)
Package: 200pcs/box
N.W/G.W: 20.9kgs/21.9kgs
MEAS: 39cm * 30cm * 17cm,
Delivery Date: Normally in one month
Payment Term: T/T
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days，UPS3-5days，Fedex/TNT 3-5days，EMS 7days reach destination )
